Introduction

The Zscaler ThreatLabz team discovered new activity associated with Mustang Panda, originating from two machines from a targeted organization in Myanmar. This research led to the discovery of new ToneShell variants and several previously undocumented tools. Mustang Panda, a China-sponsored espionage group, traditionally targets government-related entities, military entities, minority groups, and non-governmental organizations (NGOs) primarily in countries located in East Asia, but they have also been known to target entities in Europe.

This blog post is the first in a two-part series that covers new variants of ToneShell and a new tool that we have named StarProxy, both found on Mustang Panda’s staging server. The second part of the blog explores two keyloggers and an EDR evasion driver, also hosted on the same staging server.

Key Takeaways

• ToneShell, a backdoor used by Mustang Panda, has been updated with changes to its FakeTLS command-and-control (C2) communication protocol as well as to the methods for creating and storing client identifiers.
• ThreatLabz discovered a new lateral movement tool used by Mustang Panda that we have named StarProxy, which leverages the FakeTLS protocol to proxy traffic and facilitate attacker communications.
• Mustang Panda remains active in targeting organizations and individuals in Myanmar.
• Mustang Panda employs DLL sideloading techniques, typically bundling malicious tools inside RAR archives paired with legitimate, signed binaries.

Technical Analysis

Mustang Panda packs their tools in archive files hosted on a staging server. All the tools detected by ThreatLabz utilized DLL sideloading to execute malicious payloads to evade endpoint detection products.

We will first examine new versions of a known Mustang Panda tool known as ToneShell. ToneShell is designed to download malicious payloads and execute attacker-specified commands on target machines.

ToneShell

ToneShell is one of Mustang Panda's most frequently used malware tools. Since the core functionality has already been publicly documented, this analysis focuses solely on the recent changes worth highlighting. This section examines three variants of ToneShell: Variants 1 and 3 were discovered on Mustang Panda’s staging server, while Variant 2 was identified through a third-party malware repository bundled in a ZIP file instead of a RAR file.

All three ToneShell variants were found in archive files, which include a legitimate executable (EXE) file and a DLL file (ToneShelll) which is sideloaded.

Table 1: Example ToneShell variant filenames.

Seed generation

Random number generators are utilized in multiple sections of ToneShell’s code for two primary purposes:

• As a fallback mechanism to generate a 16-byte GUID if CoCreateGuid() fails (as described in the following section).
• To generate a rolling XOR key, which encrypts and decrypts data exchanged between the victim’s machine and the C2 server.

Each random number generator requires a seed, which ToneShell derives using various methods. These methods are listed in the table below.

Table 2: ToneShell random number seed generation.

seed = (*(_QWORD *)&SystemTimeAsFileTime - 116444736000000000i64) / 10000000;

Creation of GUID file

Each ToneShell variant observed in-the-wild generates a GUID, or a value derived from the GUID, and writes it to a file on the filesystem. This GUID is used to uniquely identify the infected machine. Recent variants display subtle changes in how this file is created. The table below shows how the three different ToneShell variants create the GUID file.

Table 3: Shows how each ToneShell variant creates the GUID file.

struct GUIDFILE
{
	DWORD total_length;
	BYTE guid[16];
	DWORD length_of_random_byte_array; // 64KB max size
	BYTE random_byte_array[];
}

Rolling XOR key

ToneShell employs a rolling XOR key to encrypt and decrypt network traffic exchanged with its C2 server. This XOR key is generated using an LCG, seeded by values derived through methods previously described. The XOR key size varies across ToneShell variants, with Team T5 documenting sizes ranging from 0x20 to 0x200.

• Variant 1 uses a 0x100-byte XOR key
• Variant 2 uses a 0x100-byte XOR key
• Variant 3 uses a 0x200 byte XOR key

This aligns with Mustang Panda's tactic of rapidly iterating and modifying their tools, likely to evade detection.

FakeTLS header

FakeTLS headers are a key feature of ToneShell, which helps disguise the malware’s network activity. They are used to mimic the TLS protocol in network traffic exchanged between the infected machine and the C2 server.

Earlier ToneShell variants utilized the FakeTLS header with the bytes 0x17 0x03 0x03, corresponding to TLSv1.2. However, newer variants have introduced the FakeTLS header bytes 0x17 0x03 0x04, to spoof TLSv1.3. Interestingly, in Variant 2, the TLSv1.3 FakeTLS header was used for sending beacons, while the server continued responding with the older TLSv1.2 header.

This modification appears to be an attempt by the threat actor to evade network signature-based detection systems that rely on identifying specific FakeTLS header patterns.

C2 commands

ToneShell variants continue to utilize a custom TCP-based protocol. Compared to earlier versions, these newer variants focus primarily on executing payloads received from the C2, reflecting Mustang Panda's pattern of iterating their tools, likely to evade detection while adopting a more minimalist design for remote shells.

Variant 1 is a very minimal backdoor, which receives files and acts as a reverse shell. The table below shows the C2 commands supported by Variant 1.

Table 4: C2 commands supported by Variant 1 of ToneShell.

Variant 2 specifically includes functionality to download DLLs from the C2 and execute them within victim processes through DLL injection. The table below shows the C2 commands supported by Variant 2.

Table 5: C2 commands supported by Variant 2 of ToneShell.

ToneShell Variant 3 includes functionality to download files and create a subprocess that redirects standard input (stdin), standard output (stdout), and standard error (stderr) streams to the C2 server. The table below shows the C2 commands supported by Variant 3.

Table 6: C2 commands supported by Variant 3 of ToneShell.

StarProxy

ThreatLabz uncovered a new lateral movement tool associated with Mustang Panda’s operations, which we named StarProxy. This tool was found within a RAR archive hosted on the group’s staging server with the name client.rar. The archive contains two files: a legitimate, signed binary (IsoBurner.exe) and a malicious DLL (StarBurn.dll), which is the StarProxy tool. The StarProxy DLL is sideloaded when the IsoBurner.exe file is executed.

Once active, StarProxy allows attackers to proxy traffic between infected devices and their C2 servers. StarProxy achieves this by utilizing TCP sockets to communicate with the C2 server via the FakeTLS protocol, encrypting all exchanged data with a custom XOR-based encryption algorithm. Additionally, the tool uses command-line arguments to specify the IP address and port for communication, enabling attackers to relay data through compromised machines. The figure below illustrates how StarProxy proxies traffic.

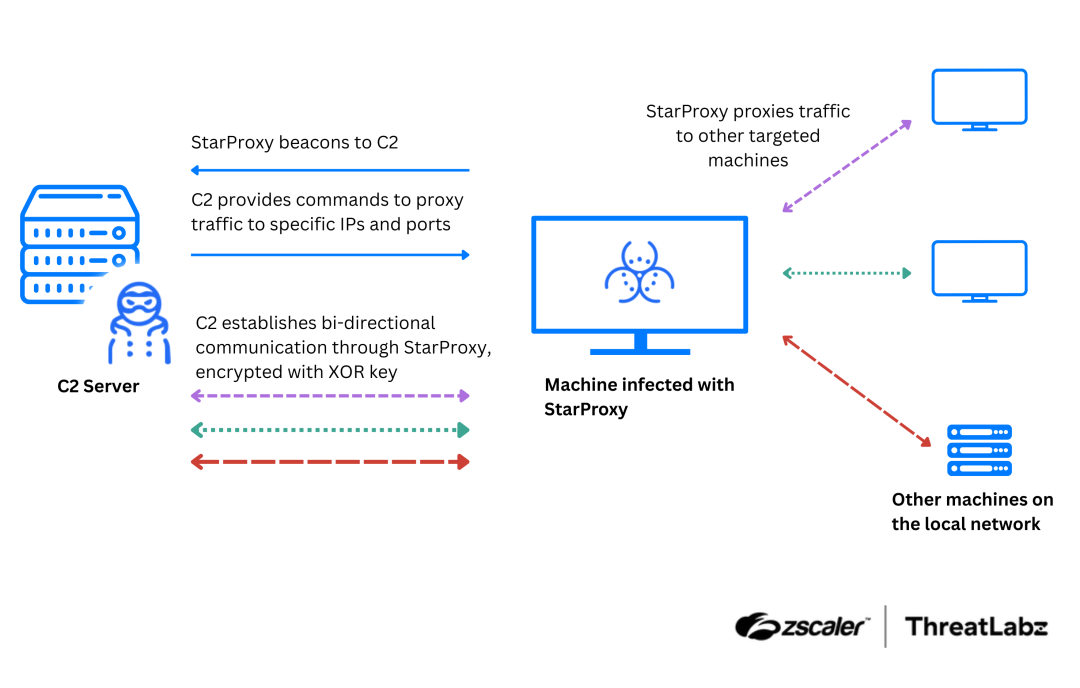

Figure 1: High-level diagram of StarProxy activity.

Given the features of the malware, and the use of command-line arguments, Mustang Panda likely uses StarProxy as a post-compromise tool to access systems that are not reachable directly over the Internet.

Initialization

The StarProxy DLL contains a malicious export function named StarBurn_UpStartEx, which expects two command-line arguments: a C2 IP address and a port number. Upon execution, the DLL attempts to connect to the specified C2 IP address. If the connection fails, StarProxy will keep retrying until it succeeds, waiting for one second in between attempts.

Beaconing

Once a connection to the C2 server is successfully established, StarProxy beacons to the C2 to receive commands. If the C2 server signals that there are no commands, StarProxy waits for one second before beaconing again. If the C2 server signals that there are further commands to execute, StarProxy makes additional requests to the C2 server to retrieve the commands and execute them.

Packet encryption and decryption

All messages exchanged between the client and the C2 server are encrypted using two hardcoded 0x100-byte XOR keys. Details of the XOR keys and the encryption algorithm are available on the ThreatLabz GitHub page.

C2 protocol

Request Header

All messages sent by StarProxy to the C2 server are prefixed with a request header (SEND_HEADER), which includes the fields below.

struct SEND_HEADER
{
   BYTE fake_tls_header[3]; // 0x17 0x03 0x03.
   WORD message_size;       // Size of data after the FakeTLS header.
   DWORD zero;              // Zero bytes (start of encrypted data with a hardcoded key).
   WORD message_type;       // C2 message type.
   WORD buffer_size;        // Buffer size specific to each message type.
}

Response header

All messages sent by the C2 to StarProxy are prefixed with a response header (RECV_HEADER), which includes the fields below.

struct RECV_HEADER
{
   BYTE fake_tls_header[3]; // 0x17 0x03 0x03.
   WORD buffer_size;        // Size of the message body (RECV_BODY).
}

Notably, the FakeTLS header in these messages is designed to impersonate the TLSv1.2 protocol similar to the earlier ToneShell variants.

Response body (RECV_BODY)

The RECV_HEADER is followed by the RECV_BODY, which includes the command number and data specific to the corresponding command. The generic structure of the RECV_BODY is shown below.

struct RECV_BODY
{
   DWORD unused1;
   WORD command_number;  // The ID of the command to be executed.
   WORD unused2;
   BYTE body[];          // Body data (variable length array).
}

Beacon message

As mentioned in the beaconing section above, StarProxy sends a beacon message (CMD_0_MESSAGE) at regular intervals to check for commands to be executed. The structure of the beacon message is shown in the table below.

struct BEACON_MESSAGE
{
   SEND_HEADER send_header; // message_type = 0 to indicate beacon message.
   DWORD hash_of_rand_arr;  // The hash of a randomly generated array with  variable length, computed using a custom hash algorithm.
   DWORD size_of_rand_arr;  // Number of bytes occupied by the random array. This is always a multiple of four.
   BYTE rand_arr[];         // A variable-length random array, likely used to verify the correct decryption of messages from the client.
}

StarProxy uses the following convoluted process to generate the array of random bytes:

• Calls GetLocalTime() to retrieve a SystemTime structure.
• Adds up all members of the SystemTime structure to generate a seed.
• The seed is used to initialize a pseudo-random number generator (PRNG) using srand().
• Generates a random number between 1 and 16. This value will be the variable length (in bytes) of the array containing 32-bit integers.
• The array is filled with randomly generated 32-bit integers, which are then used to generate a 32-bit hash.

In response to the beacon message, StarProxy expects the following response format from the C2:

struct BEACON_MESSAGE_RESPONSE
{
   RECV_HEADER recv_header;   // Contains the FakeTLS header and message size.
   DWORD unused;
   DWORD has_command;         // 0: command data present; any other value: no data present.
}

C2 command handler

The StarProxy client supports 5 command IDs (RECV_BODY.wCmdNum). The table below describes each command ID and its purpose.

Table 7: Lists StarProxy commands.

The purpose of the duplicate command handlers 1 and 2 is not clear, but could suggest that StarProxy is still under development.

To Be Continued

In Part 1, we explored Mustang Panda’s modifications to ToneShell and a new lateral movement tool that we discovered called StarProxy that is likely used for post-compromise activities and lateral movement. In Part 2, we will explore two new keyloggers and an EDR evasion driver, also discovered on Mustang Panda’s staging server.

Zscaler Coverage

Zscaler’s multilayered cloud security platform detects indicators related to Mustang Panda at various levels with the following threat names:

• Win32.Backdoor.Toneshell
• Win32.Trojan.MustangPanda

Indicators Of Compromise (IOCs)

File indicators

ToneShell variants

The table below shows details about the three ToneShell variants identified by ThreatLabz.

Network indicators

Host indicators

ToneShell GUID file paths

The following files are used to store the GUID or its derived values.

• %temp%\cryption_event.ini
• C:\\ProgramData\\bcryptprimitive.appcore.tbi
• C:\Users\public\description.ini

Certificate details of the signed binaries

MITRE ATT&CK Framework
