Analysis of Adobe Acrobat Reader Javascript Doc.print() Use-After-Free Vulnerability (CVE-2022-34233)

KAI LU, BRETT STONE-GROSS
August 01, 2022 - 4 min read

In July 2022, Adobe released a security update for vulnerabilities in Adobe Acrobat and Reader. The update fixed a vulnerability that is identified as CVE-2022-34233 discovered by the Zscaler ThreatLabz research team. In this blog, we present our analysis of CVE-2022-34233, ​​a Use-After-Free vulnerability in Adobe Acrobat and Reader.



Vulnerability Description

CVE-2022-34233 is a Use-After-Free vulnerability that could potentially lead to the disclosure of sensitive memory. An attacker could leverage this vulnerability to bypass mitigations such as ASLR. Exploitation of this issue requires user interaction in that a victim must open a malicious file.



Known Affected Software Configurations

  • Acrobat DC Continuous 22.001.20142 and earlier versions in Windows & macOS
  • Acrobat Reader DC Continuous 22.001.20142 and earlier versions in Windows & macOS
  • Acrobat 2020 Classic 2020   20.005.30334 and earlier versions (Win)
  • Acrobat 2020 Classic 2020  20.005.30331 and earlier versions (Mac)
  • Acrobat Reader 2020 Classic 2020   20.005.30334 and earlier versions (Win)
  • Acrobat Reader 2020 Classic 2020  20.005.30331 and earlier versions (Mac)
  • Acrobat 2017 Classic 2017 17.012.30229 and earlier versions (Win)
  • Acrobat 2017 Classic 2017 17.012.30227 and earlier versions  (Mac) 
  • Acrobat Reader 2017 Classic 2017 17.012.30229 and earlier versions (Win)
  • Acrobat Reader 2017 Classic 2017 17.012.30227 and earlier versions (Mac)    



Proof of Concept

The vulnerability can be triggered by opening a malicious PDF file. Zscaler ThreatLabz created a PoC file that will cause the following crash. To reproduce this issue, the following steps can be performed:

  1. Enable Page Heap in Acrobat.exe
  2. In Windbg, open Executable -> File name: Acrobat.exe -> Arguments: /path/to/poc.pdf, then enable Debug child processes also -> Open. Next, issue the command g in Windbg multiple times.

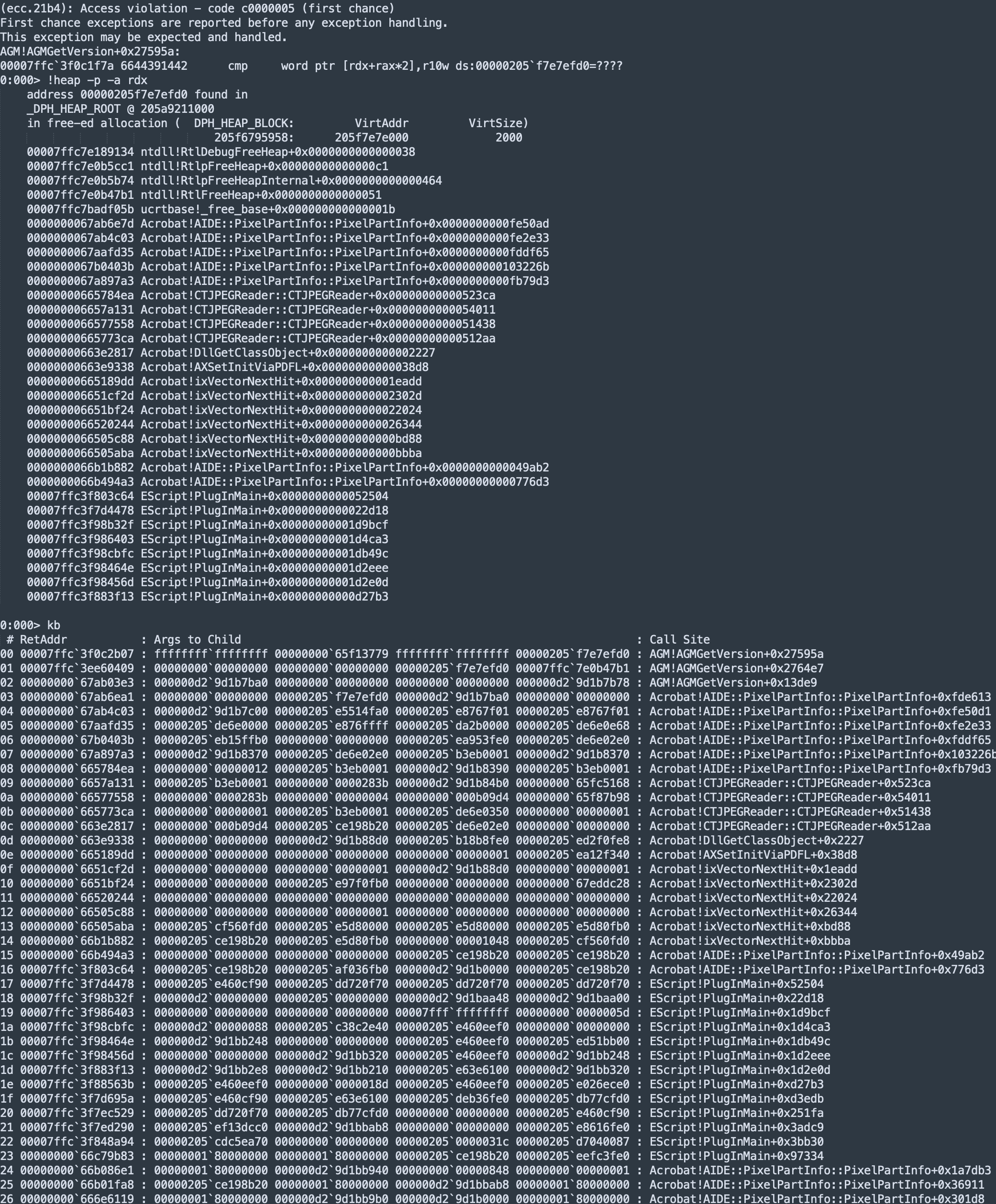

  3. Adobe Acrobat will cause a crash after a while. The following crash will be produced:



Figure



Test Environment

Adobe Acrobat Reader DC 64 bits version, Product version: 22.1.20117.0

EScript.api, Product version: 22.1.20117.0



Technical Analysis

This Use-After-Free (UAF) vulnerability is triggered when Adobe Reader improperly handles the Doc.print() Javascript API that is filled with specially crafted parameters. In Figure 1, the definition of the Javascript API Doc.print() is shown.

Figure

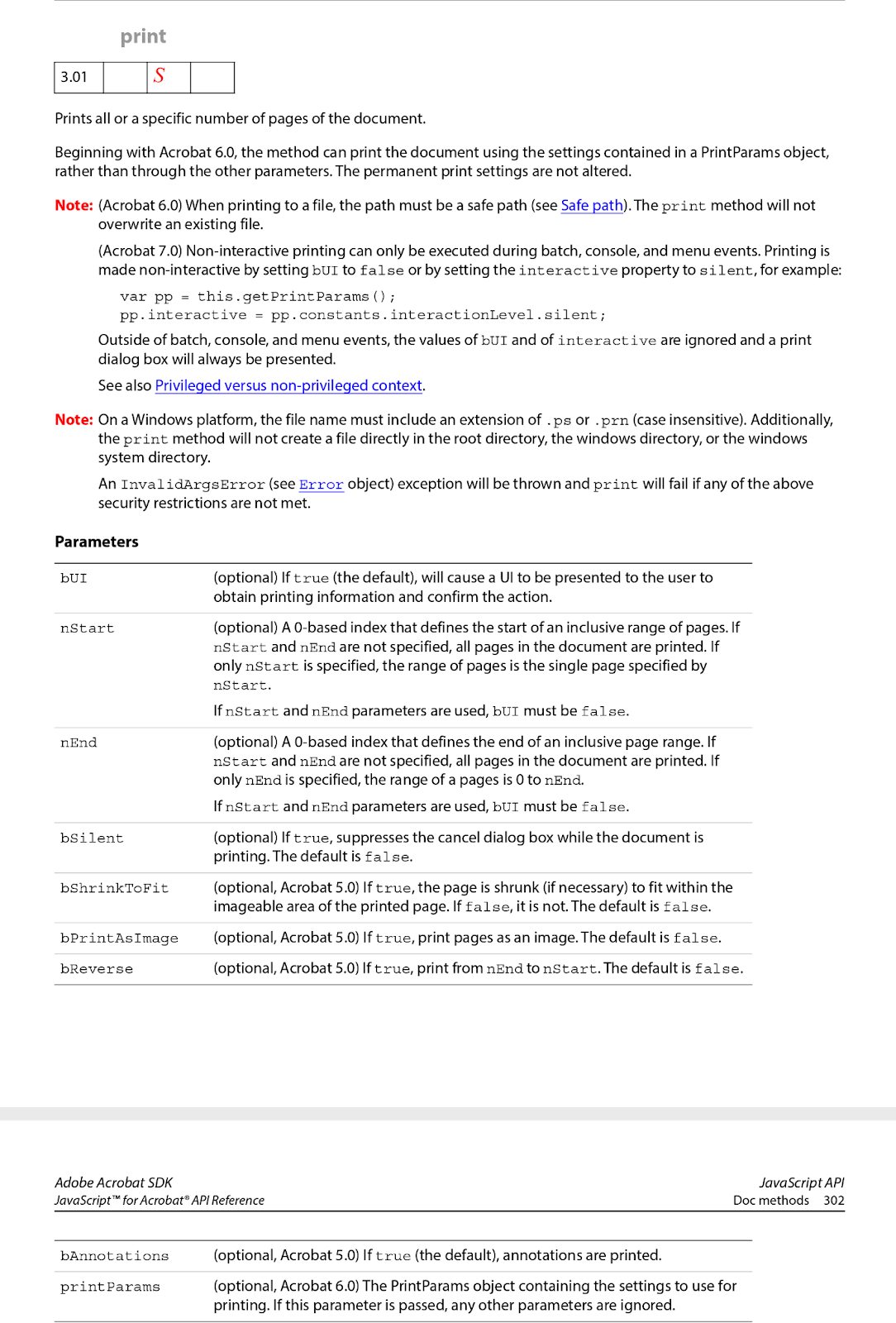

Figure 1. The definition of the Javascript API Doc.print()

Figure 2 shows the crafted PoC to trigger this vulnerability.

Figure

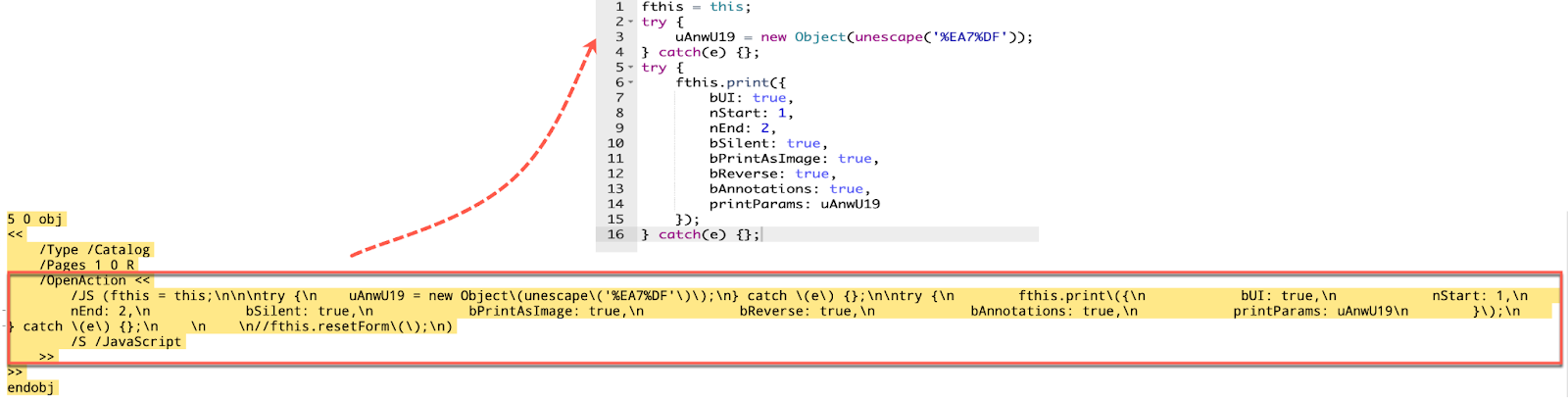

Figure 2. Code snippet of the PoC

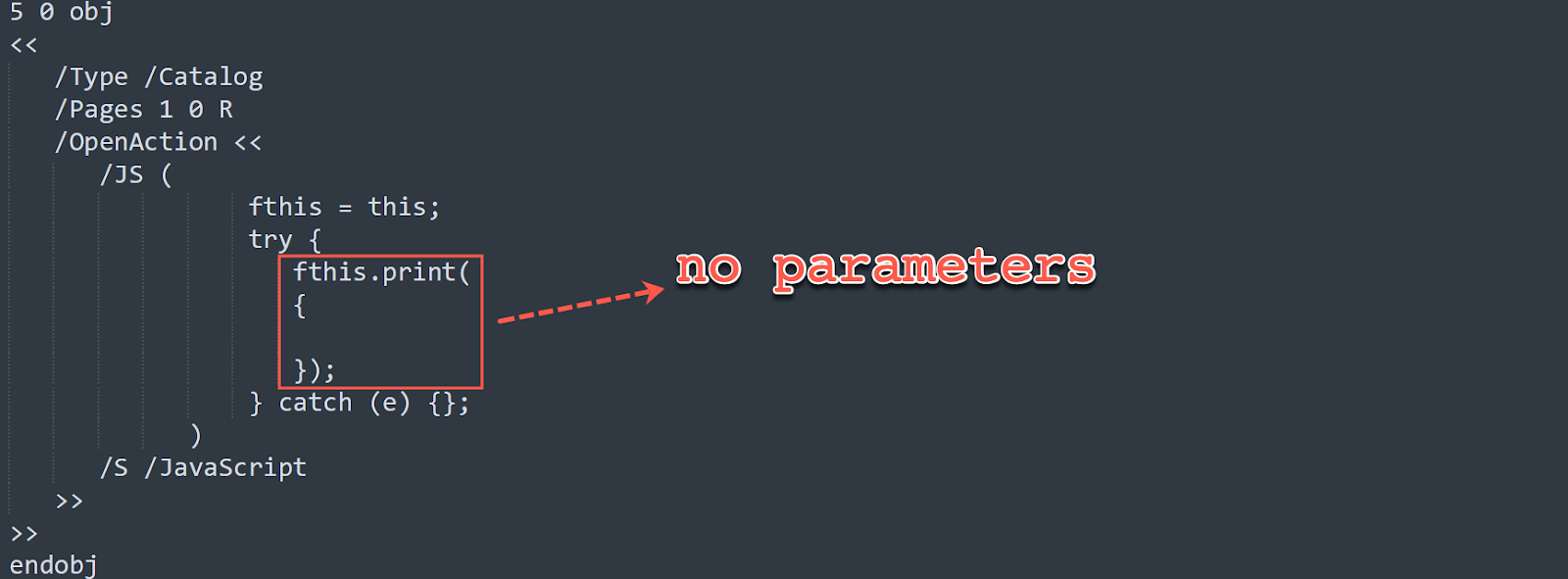

Zscaler ThreatLabz also noticed the same vulnerability can be reproduced by calling the Doc.print() function with no parameters as shown below.

Figure

In Windbg, when the memory access violation happens, the memory address that triggered the exception can be analyzed, along with the stack backtraces. In Figure 3, the register RDX points to a freed memory region. Therefore, when Adobe Acrobat accesses this freed memory region it will cause a Use-After-Free crash.

Figure

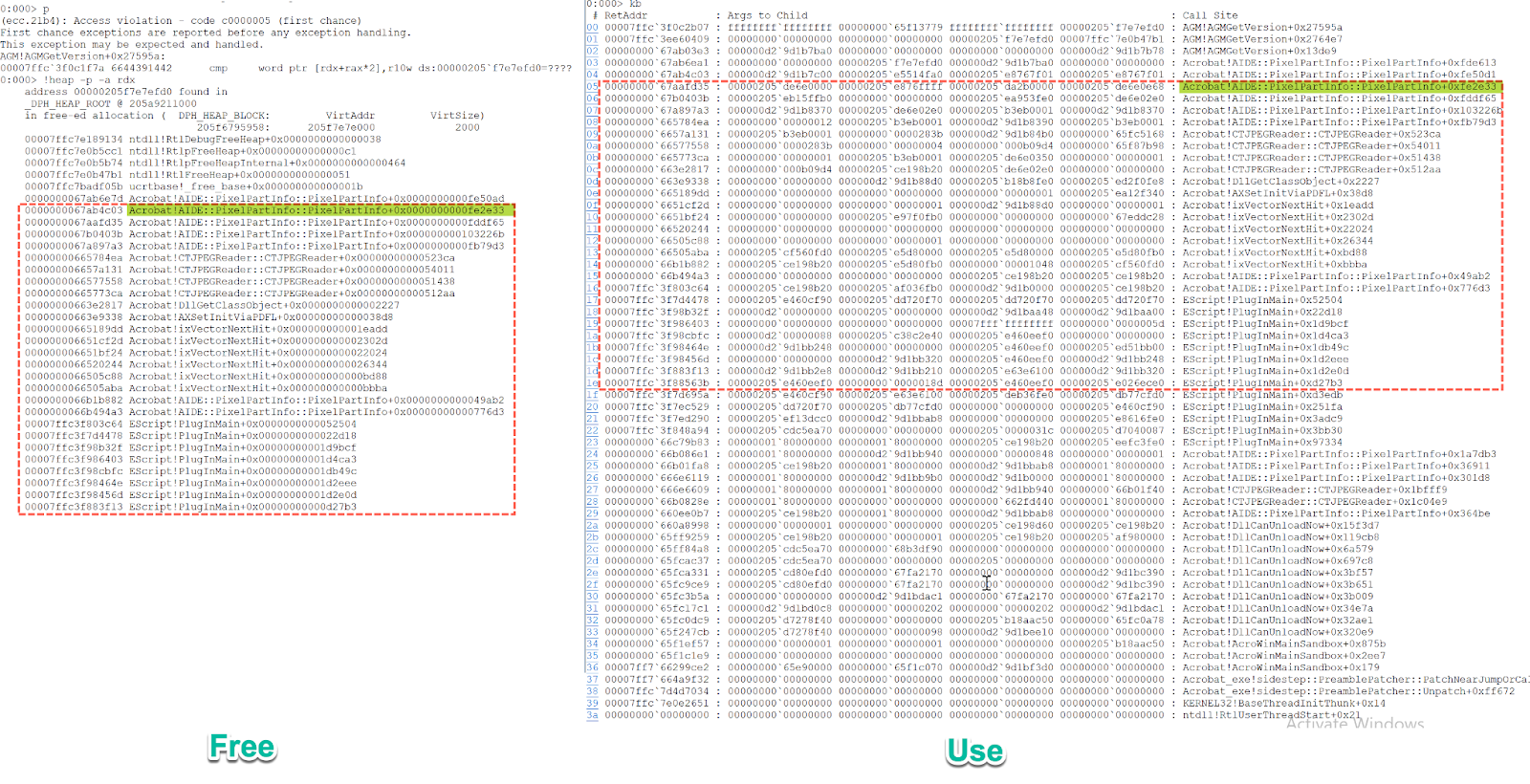

Figure 3. The comparison between the outputs of command !heap -p -a and kb

The two highlighted parts have the same stack backtraces.  The following breakpoint can be set to trace how the memory region is freed and then used again.

bu Acrobat!AIDE::PixelPartInfo::PixelPartInfo+0xfe2e2e

When the breakpoint is hit, the following output is expected in Figure 4.

Figure

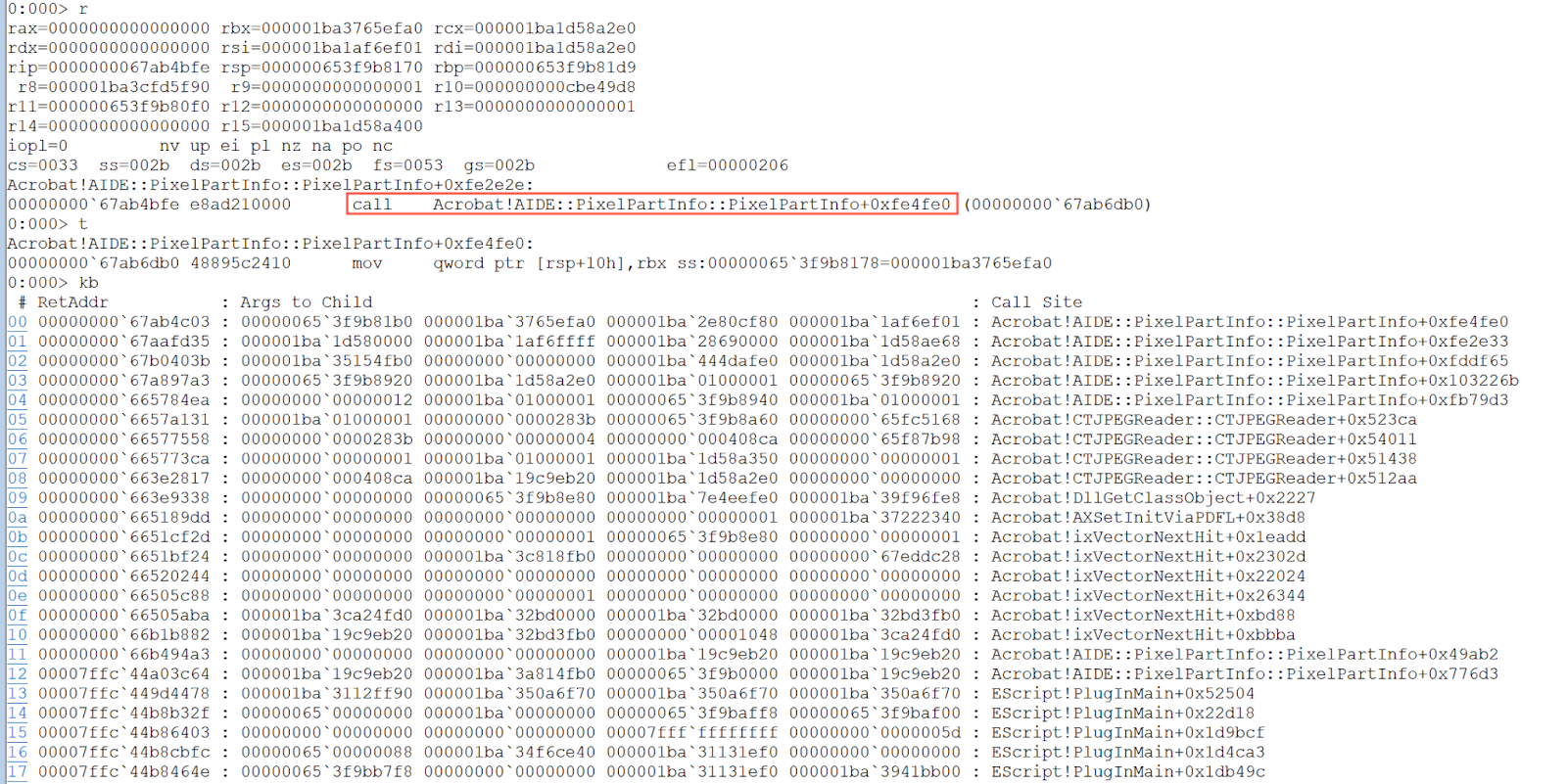

Figure 4. Breakpoint at Acrobat!AIDE::PixelPartInfo::PixelPartInfo+0xfe2e2e

At this breakpoint, it calls the function Acrobat!AIDE::PixelPartInfo::PixelPartInfo+0xfe2e2e that is mapped to the function sub_61C26DB0().  Figure 5 shows the code snippet of this function in IDA Pro.

Figure

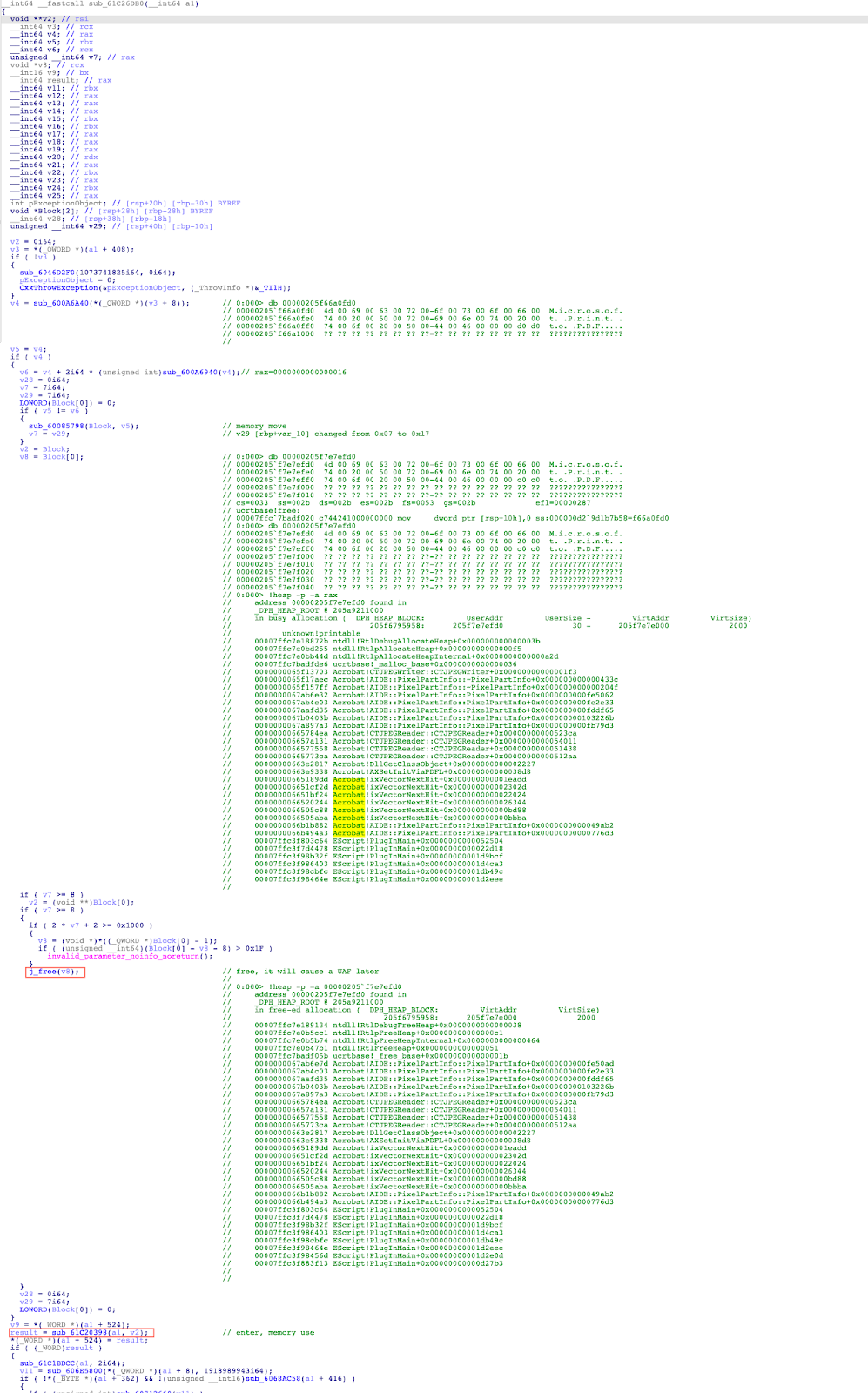

Figure 5.  The code snippet of the function sub_61C26DB0()

The following is the control flow that causes the use-after-free vulnerability:

  1. The function sub_600A6A40() is used to allocate a memory region with a size of 0x30 bytes.
  2. The function sub_60085798() copies the memory region allocated in step 1 to a new memory region, and stores the pointer to the new memory region in an array.
  3. Since the variable v7 is 0x17, it calls the API free() to free the new memory region.
  4. The function sub_61C20398() will access the memory region freed in step 3.



Mitigation

All users of Adobe Acrobat and Reader are encouraged to upgrade to the latest version of this software. Zscaler’s Advanced Threat Protection and Advanced Cloud Sandbox can protect customers against this vulnerability.

PDF.Exploit.CVE-2022-34233



References

https://helpx.adobe.com/security/products/acrobat/apsb22-32.html

https://opensource.adobe.com/dc-acrobat-sdk-docs/acrobatsdk/pdfs/acrobatsdk_jsapiref.pdf

https://nvd.nist.gov/vuln/detail/CVE-2022-34233
