CVE-2017-8570 and CVE-2018-0802 exploits being used to spread LokiBot

Malspam campaigns use malicious RTF documents to deliver LokiBot

CVE-2017-8570 and CVE-2018-0802 exploits being used to spread LokiBot

Zscaler ThreatLabZ has been tracking the usage of malicious RTF documents that leverage CVE-2017-8570 and more recently CVE-2018-0802 vulnerability exploits to install malicious payload on the victim machine. In this blog, we'll share our analysis of a campaign leveraging these two exploits to deliver LokiBot.

These malicious documents spread by using phishing emails to trick users into opening and executing them.

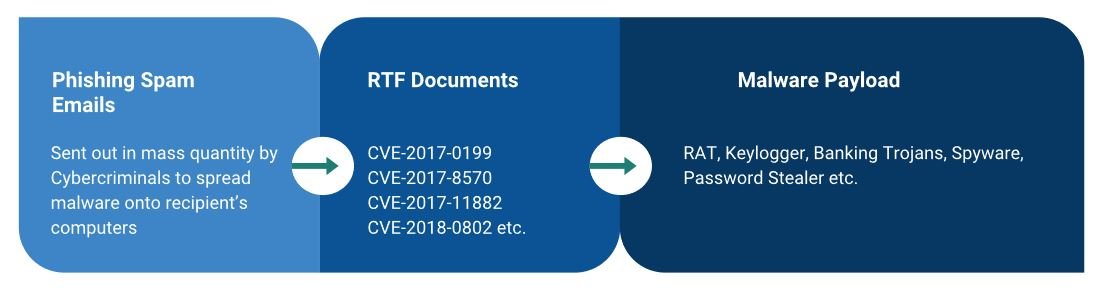

Fig 1: Malicious documents weaponized with exploits to infect target machine

An example of a phishing spam email with an attached malicious RTF document is shown below.

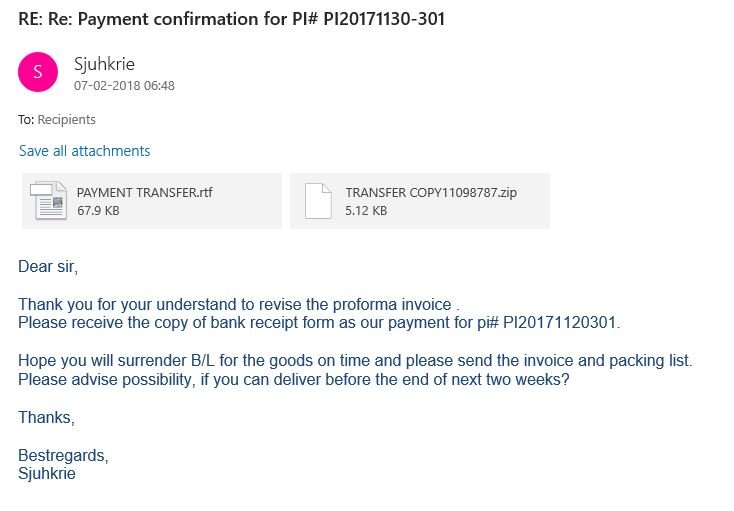

Fig 2: Phishing spam email with attached malicious RTF document

In case of the LokiBot spreading campaign we saw that these documents were either weaponised with CVE-2017-8570 or CVE-2018-0802 exploit paylods.

The workflow of both exploits is shown in the below.

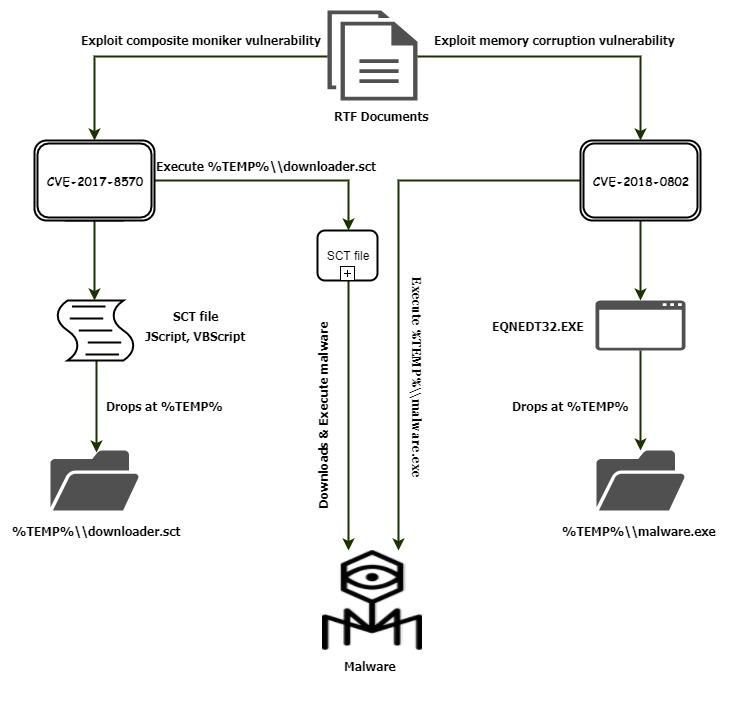

Fig 3: Workflow of CVE-2017-8570 and CVE-2018-0802


This exploit bypasses the Microsoft patch for CVE-2017-0199. It makes use of a composite moniker in the RTF file to execute a Windows Script Component (WSC) file or scriptlet on the victim’s machine. A scriptlet is a XML file wrapping a script like VBScript, JavaScript, etc.

The RTF document uses a Packager.dll trick to drop an SCT file into the %TEMP% directory and execute it using the escalated privilege that the vulnerability provides.

The document has two objdata encoded and embedded in it, as shown below.

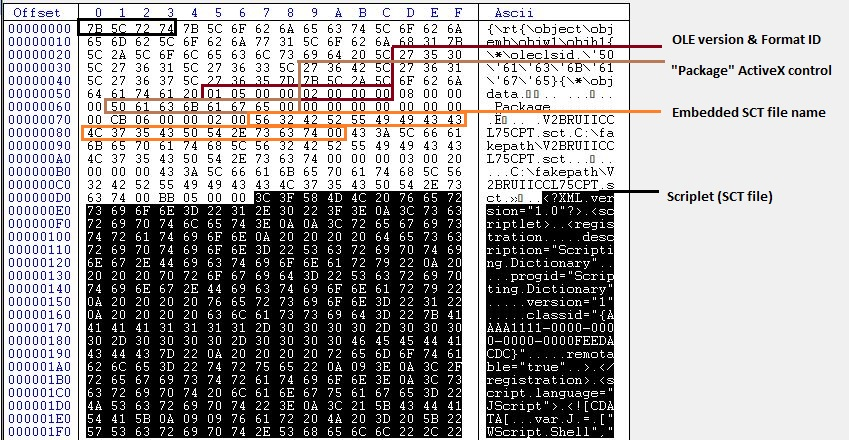

Fig 4: Objdata1 “Package” ActiveX control

01050000 02000000 = OLE object
08000000 = Length of following string
5061636B 61676500 = ActiveX name “Package”
CB060000 = Data length of following binary data

Upon executing the RTF file, the embedded SCT file is dropped in the %TEMP% directory with the name V2BRUIICCL75CPT.sct.
This SCT file will be executed by a second objdata in the RTF document.

Fig 5 : Objdata2 “OLE2Link” leveraging composite moniker

The RTF has a composite moniker, file moniker, and new moniker working together.
The byte sequences shown in the Fig 5 are the binary representation of following CLSID.
{00000309-0000-0000-C000-000000000046} = Composite moniker
{00000303-0000-0000-C000-000000000046} = File moniker
{ECABAFC6-7F19-11D2-978E-0000F8757E2A} = New moniker

After the file moniker CLSID, there is a length field followed by the file path, which is going to execute the new object persisted in “%TMP%\V2BRUIICCL75CPT.sct”.
In short, this object will execute the file by using composite moniker in the RTF document.

The dropped SCT file looks like the screen capture below.

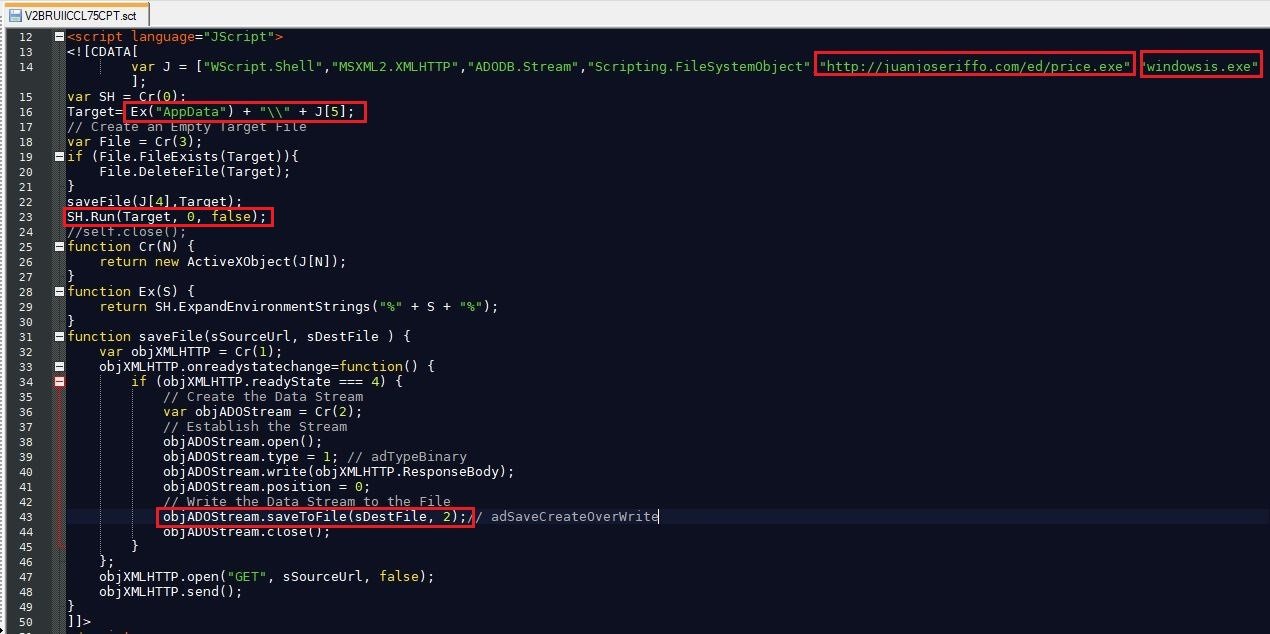

Fig 6: %TEMP%\\V2BRUIICCL75CPT.sct

This SCT file is dropped and executed by the RTF document. The SCT file has JavaScript, which downloads malicious executable price.exe from juanjoseriffo[.]com/ed/price.exe, saves it to %APPDATA% with name windowsis.exe, and executes it.


This exploit is a CVE-2017-11882 patch bypass vulnerability of type stack overflow.  This vulnerability will only work on systems updated with CVE-2017-1182 patch.

The logic behind this loophole is similar to the remote code execution vulnerability (CVE-2017-11882) using office embedded formula editor EQNEDT32.EXE

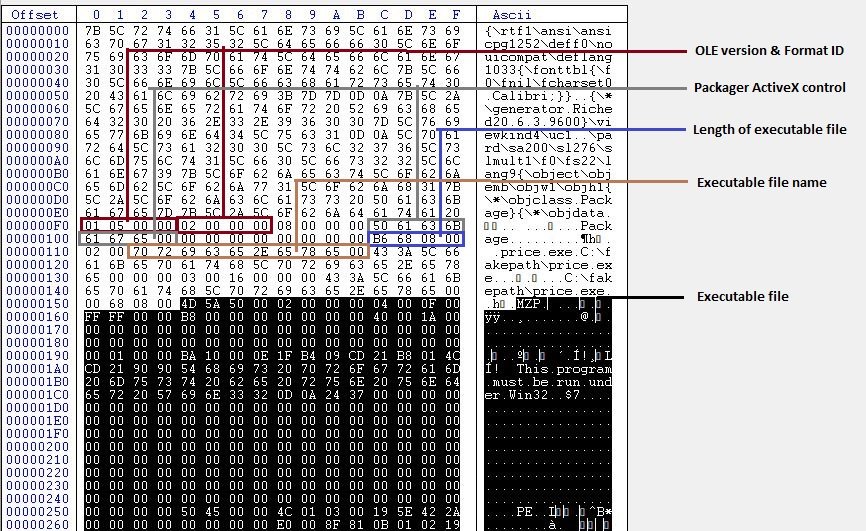

Fig 7: RTF file exploiting CVE-2018-0802

The first object data of the document file is using Packager.dll to drop the file into the %TEMP% directory. The malicious executable file, having the length 0x000868B6, will be dropped in the %TEMP% directory with the name price.exe.

Like CVE-2017-11882, the actual data for this vulnerability is in the equation native stream of the OLE object, which is shown in the below image.

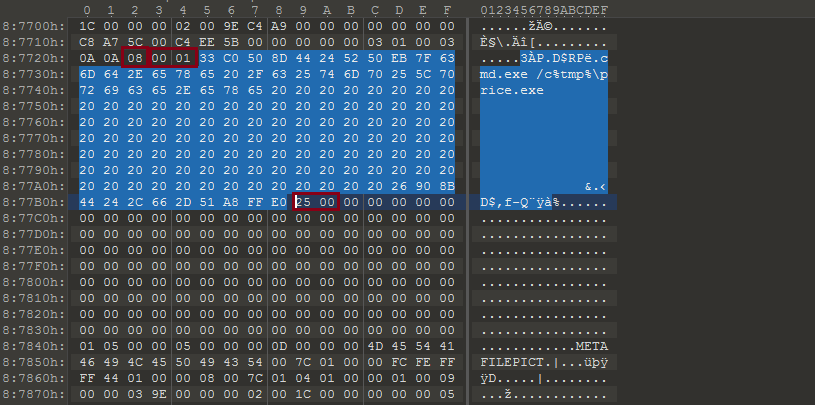

Fig 8: Equation native stream of OLE object in RTF document

The dropped file %temp%\price.exe will be executed via the Microsoft Windows command shell.


The malicious executables dropped by the RTF documents, leveraging the above two exploits, are from LokiBot family. LokiBot is a malware capable of stealing user's private data including stored credentials and cryptocurrency wallets. The stolen information is relayed back to the Command & Control (C&C) server. The LokiBot malware payloads seen in this campaign were compiled using Borland Delphi and were UPX packed.

Upon execution, the malware copies itself to the startup folder at “%APPDATA%\Microsoft\Windows\Start Menu\Programs\Startup.” to ensure persistence on system reboot.

After that, the sample reads the machine GUID from the registry key HKEY_LOCAL_MACHINE\SORTWARE\Microsoft\Cryptograpy\MachineGuid using RegOpenKeyEx and RegQueryValueEx Functions.

Fig 9: Obtaining machine GUID

Once the machine GUID is obtained from the registry, LokiBot calculates the MD5 hash of the machine GUID by calling CryptAcquireContext, CryptCreateHash, CryptHashData, and CryptGetHashParam APIs.

The sample trims the MD5 hash of the machine GUID to 24-charachters and creates a mutex with this name as seen below.

Fig 10: Mutex creation

The purpose of mutex is to ensure that only one payload of LokiBot is running on the infected system.

Information Stealing module

Once installed, Lokibot is capable of stealing stored credentials and other private information from the following applications:

  • Mozilla Firefox
  • Opera
  • Apple Safari
  • Internet Explorer
  • Google Chrome
  • Chromium
  • Easy FTP
  • DeluxeFTP
  • WinSCP
  • Outlook
  • CheckMail
  • Filezilla
  • NetDrive
  • myFTP
  • Putty
  • 360 Browser
  • KeePass, and more

LokiBot creates a hidden directory in %APPDATA% where the directory name is string extracted from 8th through 13th characters of the Mutex name. It creates four files in the hidden directory at the running time, all of which are named using string extracted from 13th through 18th characters of the Mutex name.

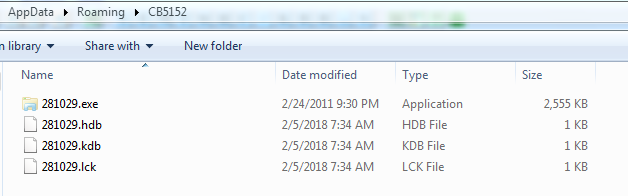

Fig 11: Files created by LokiBot

File descriptions:
.exe - Copy of malware that will execute every time when user logs in
.hdb - Database of hashes of data that has been sent to C&C server
.kdb - Keylogger data that has to be sent to C&C server
.lck - Lock file created to prevent resource conflicts

After all the target applications have been profiled for stored credentials, LokiBot prepares harvested data and sends it to the C&C server.

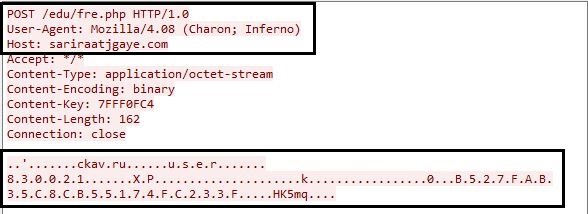

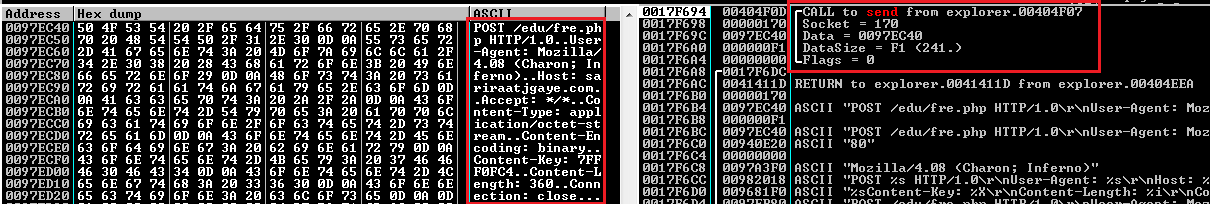

Fig 12: POST request to C&C server

Fig 13: First data sent to C2 server

The information transmitted by LokiBot contains system information, application data, Windows credentials, cryptocurrency wallet, keylogger data, screenshots etc. It will send a request every 10 minutes to the C&C server requesting C&C commands, and the malware acts in accordance with the C&C commands.

Zscaler Protections:

Microsoft released security updates for CVE-2017-8570 and CVE-2018-0802.
Zscaler detects these malicious RTF documents as “CVE-2017-8570” and “CVE-2018-0802”.
Zscaler detects LokiBot payloads as “Win32.PWS.Lokibot”.

The Zscaler Cloud Sandbox report for this threat can be seen below.

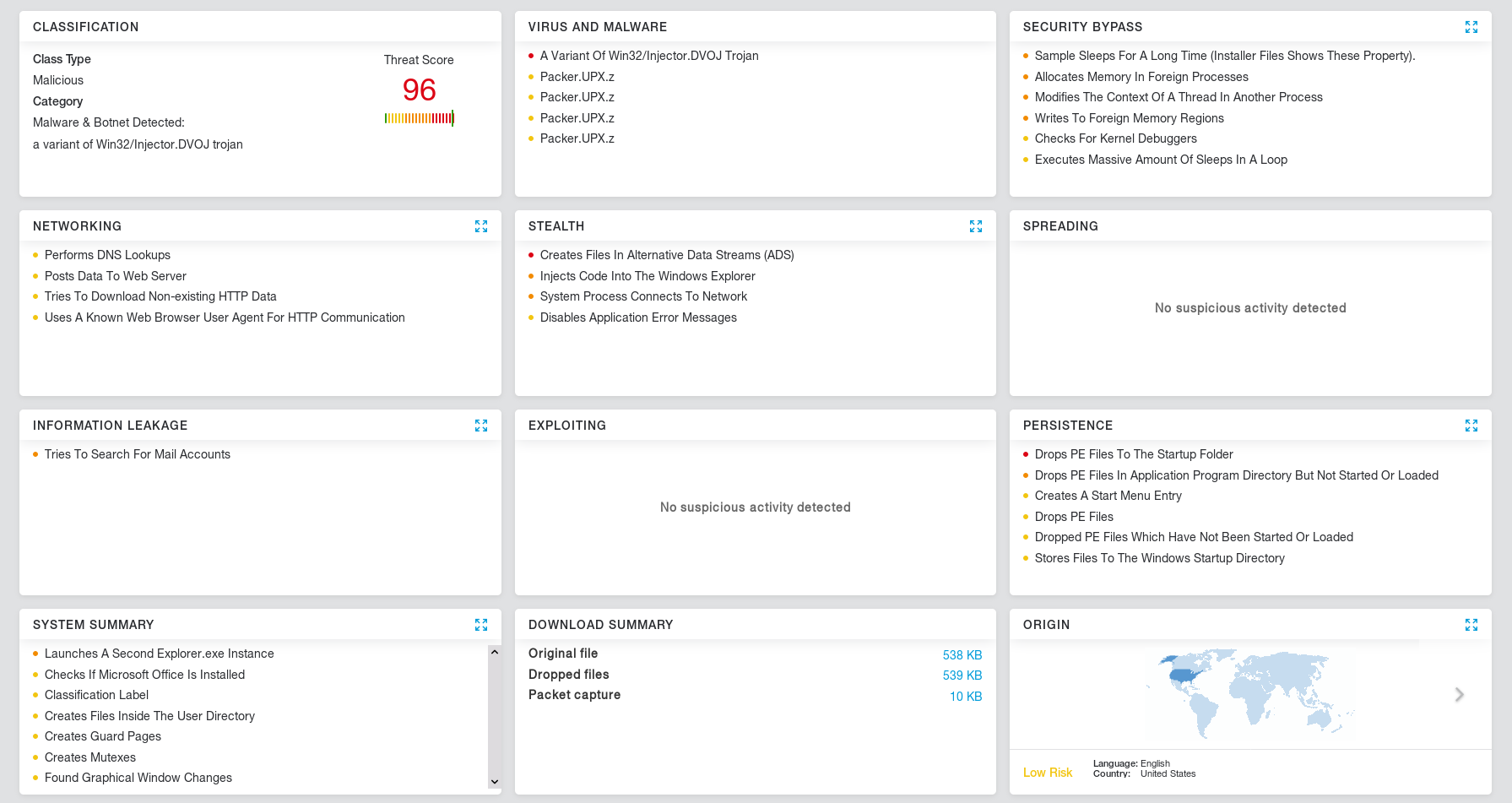

Fig 14: Zscaler Cloud Sandbox LokiBot report


MD5 : [CVE-2017-8570 & CVE-2018-0802]

MD5 : [LokiBot]
